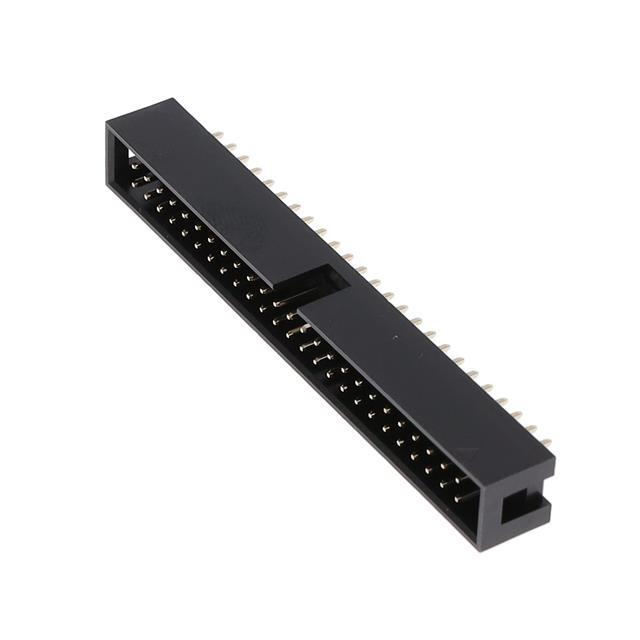

3020-50-0100-00

Active

CnC Tech, LLC

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

3020-50-0100-00

Active

CnC Tech, LLC

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

DocumentsIDC, Flat Ribbon Cable Mating Chart Soldering Guide 3X10,3X20,3221 Series +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-50-0100-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3020-50 Series

Part	Termination	Material Flammability Rating	Contact Finish - Mating	Contact Shape	Connector Type	Features	Contact Finish Thickness - Post	Number of Positions	Shrouding	Insulation Height	Insulation Height	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Current Rating (Amps)	Insulation Material	Number of Rows	Contact Length - Post	Contact Length - Post	Voltage Rating	Insulation Height [z]	Insulation Height [z]
CnC Tech, LLC 3020-50-0300-00	Solder	UL94 V-0	Gold	Square	Header	Keying Slot	Flash	50	Shrouded - 4 Wall	9 mm	0.354 in	Surface Mount	2.54 mm	0.1 in	Board to Cable/Wire	Push-Pull	All	-40 °C	105 ░C	Black	Male Pin	Gold	Flash	0.1 in	2.54 mm	Brass	3 A	Nylon 9T Polyamide (PA9T)	2
CnC Tech, LLC 3020-50-0100-00	Solder	UL94 V-0	Gold	Square	Header	Keying Slot	Flash	50	Shrouded - 4 Wall	9 mm	0.354 in	Through Hole	2.54 mm	0.1 in	Board to Cable/Wire	Push-Pull	All	-40 °C	105 ░C	Black	Male Pin	Gold	Flash	0.1 in	2.54 mm	Brass	3 A	Nylon 9T Polyamide (PA9T)	2	0.118 in	3 mm	250 VAC
CnC Tech, LLC 3020-50-0300-00-TR	Solder	UL94 V-0	Gold	Square	Header	Keying Slot Pick and Place	Flash	50	Shrouded - 4 Wall	9.1 mm	0.358 in	Surface Mount	2.54 mm	0.1 in	Board to Cable/Wire	Push-Pull	All	-40 °C	105 ░C	Black	Male Pin	Gold		0.1 in	2.54 mm	Copper Alloy	3 A	Nylon 9T Polyamide (PA9T)	2			250 VAC
CnC Tech, LLC 3020-50-0200-00	Solder	UL94 V-0	Gold	Square	Header	Keying Slot	Flash	50	Shrouded - 4 Wall			Through Hole Right Angle	2.54 mm	0.1 in	Board to Cable/Wire	Push-Pull	All	-40 °C	105 ░C	Black	Male Pin	Gold	Flash	0.1 in	2.54 mm	Brass	3 A	Nylon 9T Polyamide (PA9T)	2	0.118 in	3 mm	250 VAC	0.346 in	8.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.32
		10	$ 2.02
		360	$ 1.63
		720	$ 1.50
		1080	$ 1.29
		5040	$ 1.14

Description

General part information

3020-50 Series

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

IDC, Flat Ribbon Cable Mating Chart

Datasheet

Soldering Guide 3X10,3X20,3221 Series

Datasheet

IDC Header Mating Guide

Datasheet
