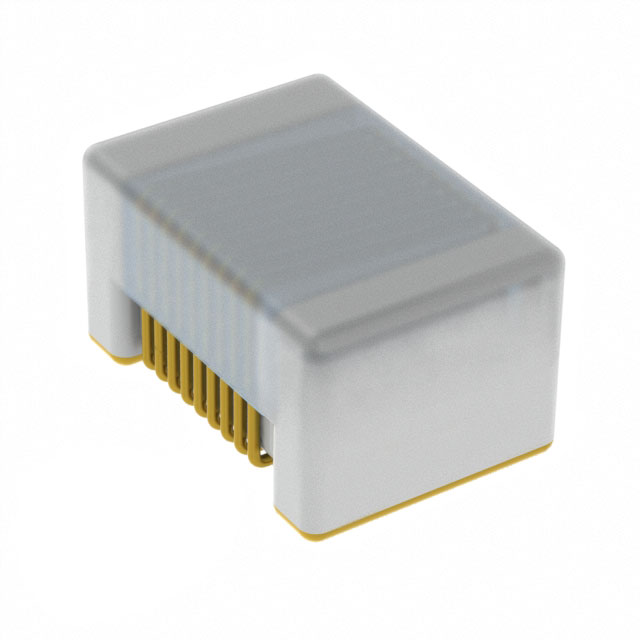

CW161009A-24NJ

Active

Bourns Inc.

FIXED IND 24NH 700MA 140MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CW161009A-24NJ

Active

Bourns Inc.

FIXED IND 24NH 700MA 140MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CW161009A-24NJ

Current Rating (Amps)	700 mA
DC Resistance (DCR)	140 mOhm
Frequency - Self Resonant	2.65 GHz
Height - Seated (Max) [Max] [z]	0.043 in
Height - Seated (Max) [Max] [z]	1.1 mm
Inductance	24 nH
Inductance Frequency - Test	250 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	0603 (1608 Metric)
Q @ Freq	35, 250 MHz
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	0.065 in
Size / Dimension [x]	1.65 mm
Size / Dimension [y]	1.15 mm
Size / Dimension [y]	0.045 in
Tolerance	5 %

CW161009A Series

Part	Q @ Freq	DC Resistance (DCR) [Max]	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Tolerance	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Shielding	Package / Case	Frequency - Self Resonant	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)
Bourns Inc. CW161009A-56NJ	32 200 MHz	250 mOhm	56 nH	200 MHz	600 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	1.9 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm
Bourns Inc. CW161009A-68NJ	32 200 MHz		68 nH	200 MHz	600 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	1.7 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm	350 mOhm
Bourns Inc. CW161009A-36NJ	36 250 MHz		36 nH	250 MHz	600 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	2.08 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm	200 mOhm
Bourns Inc. CW161009A-R39J	25 100 MHz	2.9 Ohm	390 nH	100 MHz	130 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	350 MHz	1.15 mm	0.065 in	0.045 in	1.65 mm
Bourns Inc. CW161009A-6N2J	25 250 MHz		6.2 nH	250 MHz	700 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	5.8 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm	100 mOhm
Bourns Inc. CW161009A-24NJ	35 250 MHz		24 nH	250 MHz	700 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	2.65 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm	140 mOhm
Bourns Inc. CW161009A-8N7J	28 250 MHz		8.7 nH	250 MHz	700 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	4.6 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm	100 mOhm
Bourns Inc. CW161009A-4N3J	22 250 MHz	70 mOhm	4.3 nH	250 MHz	700 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	5.9 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm
Bourns Inc. CW161009A-39NJ	36 250 MHz		39 nH	250 MHz	600 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)		1.15 mm	0.065 in	0.045 in	1.65 mm	210 mOhm
Bourns Inc. CW161009A-47NJ	35 200 MHz	230 mOhm	47 nH	200 MHz	600 mA	5 %	Ceramic	125 °C	-40 °C	Surface Mount	0.043 in	1.1 mm	AEC-Q200	Unshielded	0603 (1608 Metric)	2 GHz	1.15 mm	0.065 in	0.045 in	1.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.21
		10	$ 0.16
		25	$ 0.15
		50	$ 0.14
		100	$ 0.13
	Digi-Reel®	1	$ 0.21
		10	$ 0.16
		25	$ 0.15
		50	$ 0.14
		100	$ 0.13
	Tape & Reel (TR)	6000	$ 0.08

Description

General part information

CW161009A Series

24 nH Unshielded Inductor 700 mA 140mOhm Max 0603 (1608 Metric)
