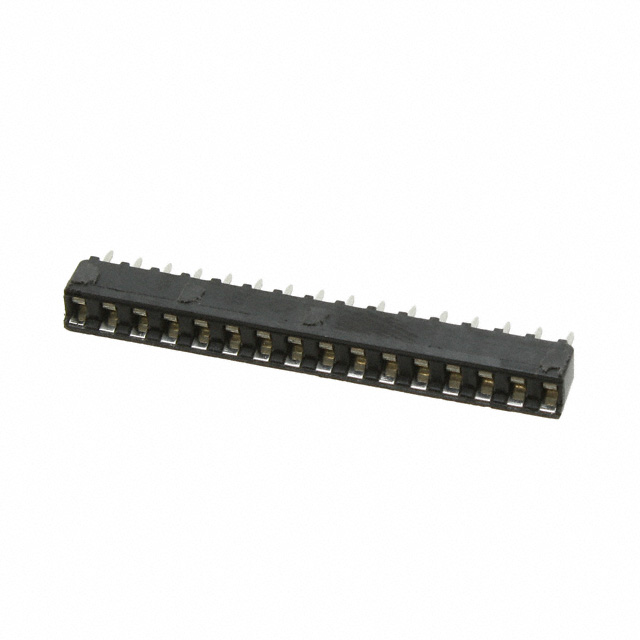

Specification	643648-3

Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Features	Closed Frame
Grid Columns	16
Grid Rows	1
Housing Material	Glass Filled, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	0.13 in
Type	SIP

643648 Series

Part	Termination Post Length	Material Flammability Rating	Termination	Contact Material - Mating	Pitch - Post	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Grid Rows	Grid Columns	Number of Positions or Pins (Grid)	Contact Finish - Mating	Housing Material	Contact Material - Post	Pitch - Mating	Contact Finish - Post	Features	Type
TE Connectivity AMP Connectors 643648-3	0.13 in	UL94 V-0	Solder	Phosphor Bronze	0.1 in	-55 °C	105 °C	Through Hole	1	16	16	Tin	Glass Filled Thermoplastic	Phosphor Bronze	0.1 in	Tin	Closed Frame	SIP
