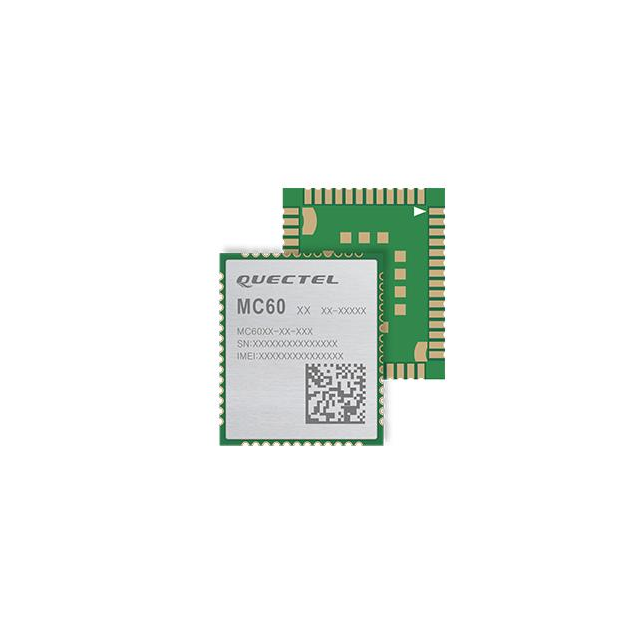

MC60CA-04-STD

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Search across all available documentation for this part.

MC60CA-04-STD

Obsolete

Quectel

RF TXRX MOD CELL NAV SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC60CA-04-STD

Antenna Type	Antenna Not Included
Current - Receiving	1.2 mA
Data Rate	85.6 kbps
Frequency	850 MHz, 1.561 GHz, 1800 MHz, 1.575 GHz, 1900 MHz, 900 MHz, 1.602 GHz
Mounting Type	Surface Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Package / Case	Module
Protocol	GPRS, Galileo, GPS, GLONASS, GNSS, Beidou, GSM
RF Family/Standard	Cellular, Navigation
Sensitivity	-167 dBm
Serial Interfaces	UART, PCM, ADC, GPIO
Utilized IC / Part	MT2503DV/B
Voltage - Supply [Max]	4.6 V
Voltage - Supply [Min]	3.3 V

MC60 Series

Part	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Protocol	RF Family/Standard	Package / Case	Data Rate	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Receiving	Antenna Type	Sensitivity	Utilized IC / Part
Quectel MC60CA-04-STD	ADC GPIO PCM UART	4.6 V	3.3 V	Surface Mount	Beidou Galileo GLONASS GNSS GPRS GPS GSM	Cellular Navigation	Module	85.6 kbps	1.561 GHz 1.575 GHz 1.602 GHz 850 MHz 900 MHz 1800 MHz 1900 MHz	-35 °C	75 ░C	1.2 mA	Antenna Not Included	-167 dBm	MT2503DV/B
Quectel MC60ECA-04-BLE	ADC GPIO PCM UART	4.6 V	3.3 V	Surface Mount	Beidou Galileo GLONASS GNSS GPRS GPS GSM	Cellular Navigation	Module	85.6 kbps	1.561 GHz 1.575 GHz 1.602 GHz 850 MHz 900 MHz 1800 MHz 1900 MHz	-35 °C	75 ░C	1.2 mA	Antenna Not Included	-167 dBm	MT2503DV/E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MC60 Series

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, GSM, GPRS Transceiver Module 850MHz, 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available
