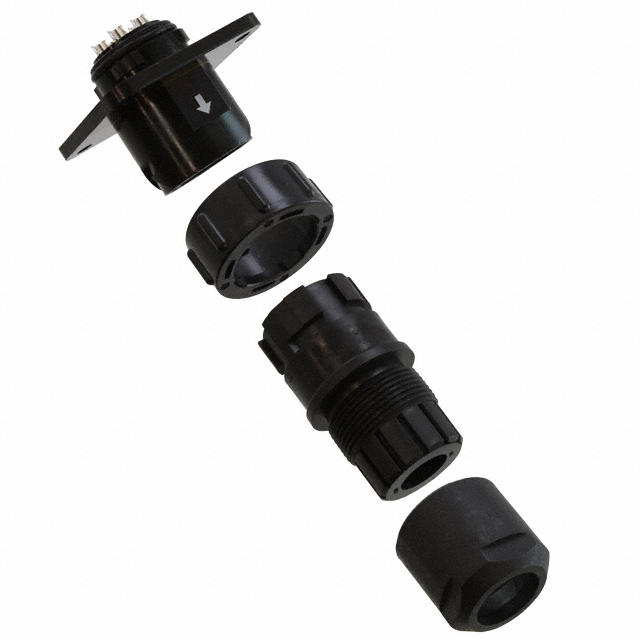

JN2KW05FH1

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JN2KW05FH1

Applications	Industrial
Backshell Material, Plating	Synthetic Resin
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Push-Twist
Features	Ground Lug, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	5
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Zinc Alloy
Shell Size - Insert	W
Voltage Rating	400 VAC

Part	Fastening Type	Voltage Rating	Contact Material	Ingress Protection	Color	Primary Material	Backshell Material, Plating	Applications	Current Rating (Amps)	Mounting Feature	Shell Finish	Number of Positions	Orientation	Contact Finish - Mating	Shell Material	Mounting Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Connector Type	Features
JAE Electronics JN2KW05FH1	Push-Twist	400 VAC	Copper Alloy	IP67 - Dust Tight Waterproof	Black	Metal	Synthetic Resin	Industrial	13 A	Flange	Zinc	5	N	Silver	Zinc Alloy	Free Hanging (In-Line) Panel Mount	Synthetic Resin	100 °C	-20 C	W	Receptacle Female Sockets	Backshell Ground Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	17	$ 24.08

General part information

5 (4 Power + PE) Position Circular Connector Receptacle, Female Sockets Solder Cup
