533945 0101000

Active

Belden Inc.

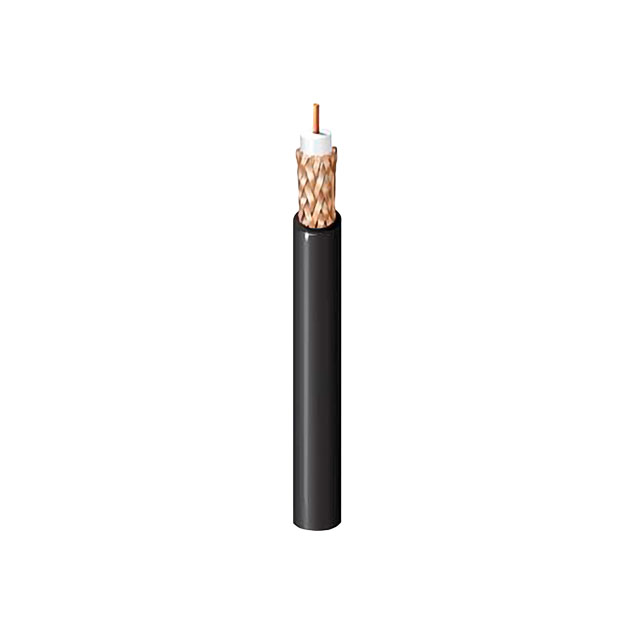

RG-6/U COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-6/U COAX

Technical Specifications

Parameters and characteristics for this part

Specification	533945 0101000

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Shield Coverage	95 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	CCTV
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	Shield Material	Length	Length	Dielectric Material	Wire Gauge	VoP, Velocity of Propagation	Conductor Material	Jacket (Insulation) Material	Impedance	Cable Type	Shield Coverage	Cable Group	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Conductor Strand	Jacket Color	Usage
Belden Inc. 533945 0101000	Copper Bare	304.8 m	1000 ft	Foam Polyethylene (FPE)	18 AWG	83	Copper Bare	Poly-Vinyl Chloride (PVC)	75 Ohms	Coaxial	95 %	RG-6	0.18 in	4.57 mm	Braid	Solid	Black	CCTV
Belden Inc. 533945 010U1000	Copper Bare	304.8 m	1000 ft	Foam Polyethylene (FPE)	18 AWG	83	Copper Bare	Poly-Vinyl Chloride (PVC)	75 Ohms	Coaxial	95 %	RG-6	0.18 in	4.57 mm	Braid	Solid	Black	CCTV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.40

General part information

Coaxial Cable 18 AWG RG-6 1000.0' (304.80m) 75 Ohms
