Q-2R0720008024I

Active

Amphenol Custom Cable

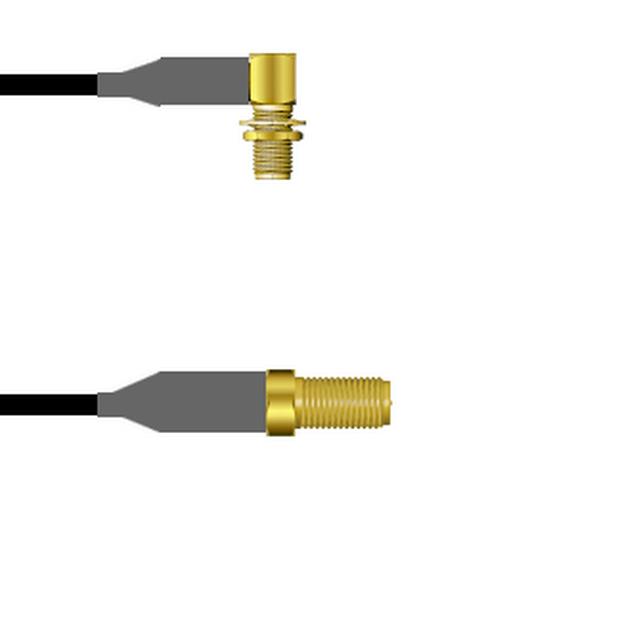

CBL ASSY RPSMA-SMA JACK-JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2R0720008024I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-SMA JACK-JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2R0720008024I

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	RP-SMA to SMA

Q-2R0720 Series

Part	2nd Connector Mounting Type	1st Connector	2nd Connector Mounting Feature	Style	Cable Type	2nd Connector	Length	Length	Length	2nd Contact Gender	Features	Connector Impedance	Cable Impedance	Frequency - Max [Max]	1st Contact Gender	Overall Impedance	Color	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-2R0720008002M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	6.6 ft	78.7 in	2 m	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R07200082.5M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	8.2 '	98.4 in	2.5 m	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008001M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	3.3 ft	39.4 in	1 m	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008024I	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle		24 "	609.6 mm	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008048I	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	4 ft	48 in	1200 mm	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008012I	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle		12 "	304.8 mm	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R07200080.5M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle		19.69 "	50 cm	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008003M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	9.8 '	118.1 in	3 m	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R07200081.5M	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle	4.9 ft	59.1 in	1.5 m	Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)
Amphenol Custom Cable Q-2R0720008018I	Panel Mount	RP-SMA Jack	Bulkhead - Front Side Nut	RP-SMA to SMA	RG-58	SMA Jack Right Angle				Female	Shielded	50 Ohms	50 Ohms	1 GHz	Male	50 Ohms	Black	Free Hanging (In-Line)	457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 145.75
		25	$ 142.94
		50	$ 140.13
		100	$ 137.32
		250	$ 134.51

Description

General part information

Q-2R0720 Series

Cable Assembly Coaxial RP-SMA to SMA RG-58 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
