SI53323-B-GM

Active

Skyworks Solutions Inc.

CLOCK FANOUT BUFFER 4-OUT 2-IN 1:4 16-PIN QFN EP

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

CLOCK FANOUT BUFFER 4-OUT 2-IN 1:4 16-PIN QFN EP

Technical Specifications

Parameters and characteristics for this part

Specification	SI53323-B-GM

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Frequency - Max [Max]	1.25 GHz
Input	LVCMOS, HCSL, CML, LVDS, LVPECL
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL

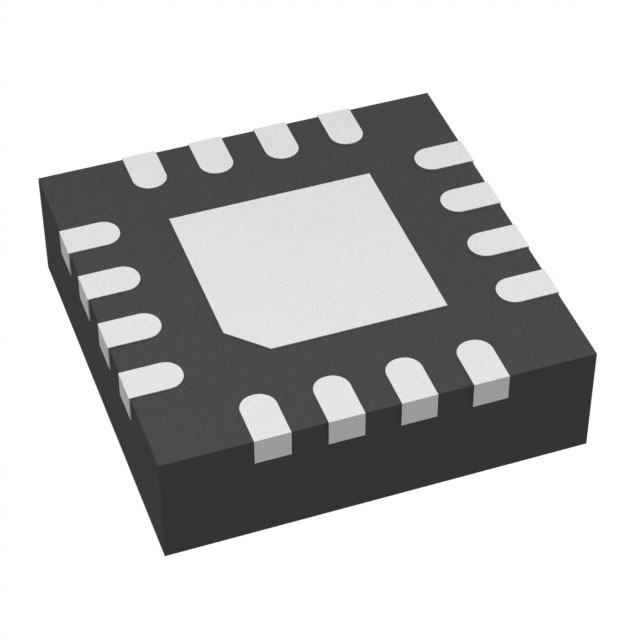

Package / Case	16-VFQFN Exposed Pad
Ratio - Input:Output [custom]	2:4
Supplier Device Package	16-QFN (3x3)
Type	Fanout Buffer (Distribution), Multiplexer
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	2.38 V

Part	Package / Case	Frequency - Max [Max]	Type	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Input	Ratio - Input:Output [custom]	Number of Circuits	Output	Supplier Device Package
Skyworks Solutions Inc. SI53323-B-GM	16-VFQFN Exposed Pad	1.25 GHz	Fanout Buffer (Distribution) Multiplexer			85 °C	-40 °C	2.38 V	3.63 V	Surface Mount	CML HCSL LVCMOS LVDS LVPECL	2:4	1	LVPECL	16-QFN (3x3)
Skyworks Solutions Inc. SI53323-B-GMR	16-VFQFN Exposed Pad	1.25 GHz	Fanout Buffer (Distribution) Multiplexer			85 °C	-40 °C	2.38 V	3.63 V	Surface Mount	CML HCSL LVCMOS LVDS LVPECL	2:4	1	LVPECL	16-QFN (3x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Clock Fanout Buffer (Distribution), Multiplexer IC 2:4 1.25 GHz 16-VFQFN Exposed Pad
