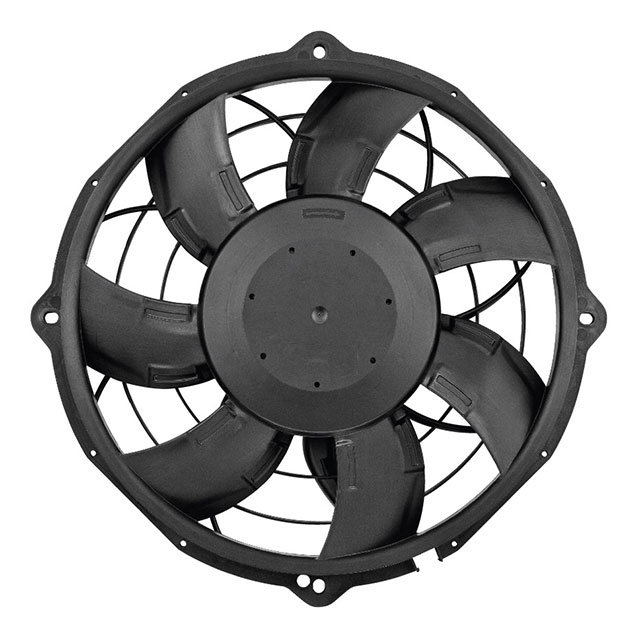

W3G300-BV25-21 - W3G300_Series

W3G300-BV25-21

Obsolete
ebm-papst Inc.

FAN AXIAL 330X76.5MM 26VDC RECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHarness Drawing SpecOperating Instructions+2
W3G300-BV25-21 - W3G300_Series

W3G300-BV25-21

Obsolete
ebm-papst Inc.

FAN AXIAL 330X76.5MM 26VDC RECT

Deep-Dive with AI

DocumentsHarness Drawing SpecOperating Instructions+2

Technical Specifications

Parameters and characteristics for this part

SpecificationW3G300-BV25-21
Air Flow1897 CFM
Air Flow53.12 mł/min
Bearing TypeBall
Current Rating (Amps)14.6 A
Fan TypeTubeaxial
FeaturesPWM Control
Ingress ProtectionIP69K - Dust Tight, High Temp Water Jets, Waterproof
Material - BladePolyamide (PA), Nylon
Material - FrameNylon, Polyamide (PA)
Operating Temperature [Max]85 °C
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)380 W
RPM3940 RPM
Size / DimensionRound
Size / Dimension [diameter]330 mm
Termination6 Position Rectangular Connector
Voltage - Rated26 VDC
Voltage Range [Max]32 VDC
Voltage Range [Min]16 VDC
Weight4.4 lbs
Weight2 kg
Width [x]76.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

W3G300 Series

Fan Tubeaxial 26VDC Round - 330mm Dia Ball 1897.0 CFM (53.12mł/min) 6 Position Rectangular Connector
