GSF1.2201.41

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

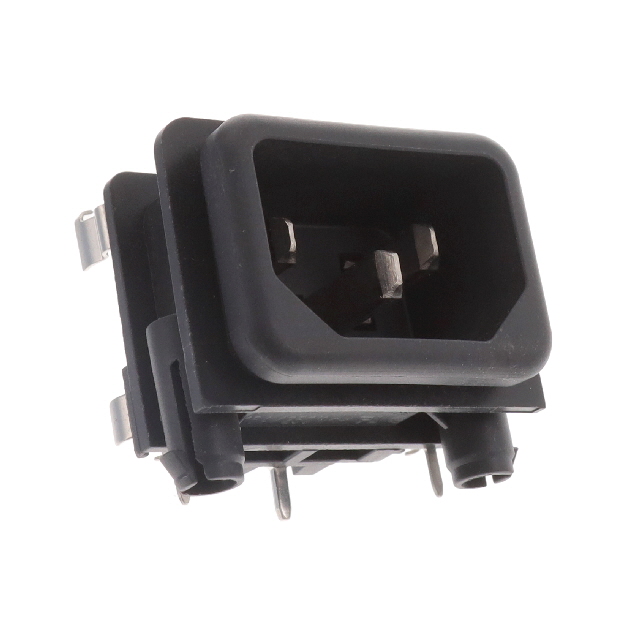

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle

Technical documentation and resources

Specification	GSF1.2201.41	GSF1.2201 Series

Accomodates a Fuse	True	True
Approval Agency	CCC, UL, CSA, ENEC	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder	Fuse Holder
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Thickness	2 mm	2 - 3 mm
Panel Thickness	0.079 in	0.079 - 0.118 in
Termination	Solder	Solder
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

Part	Termination	Material Flammability Rating	Current Rating - Appliance Inlet	Ingress Protection	Connector Style	Accomodates a Fuse	Panel Thickness	Panel Thickness	Approval Agency	Voltage Rating - Appliance Inlet	Mounting Type	Filter Type	Fuse Holder, Drawer	Connector Type
SCHURTER Inc. GSF1.2201.61	Solder	UL94 V-0	10 A	IP40	IEC 320-C14		3 mm	0.118 in	CCC, CSA, ENEC, UL	250 VAC	Panel Mount, Snap-In, Through Hole, Right Angle	Unfiltered - Commercial	Fuse Holder	Receptacle, Male Blades - Module
SCHURTER Inc. GSF1.2201.41	Solder	UL94 V-0	10 A	IP40	IEC 320-C14		2 mm	0.079 in	CCC, CSA, ENEC, UL	250 VAC	Panel Mount, Snap-In, Through Hole, Right Angle	Unfiltered - Commercial	Fuse Holder	Receptacle, Male Blades - Module
