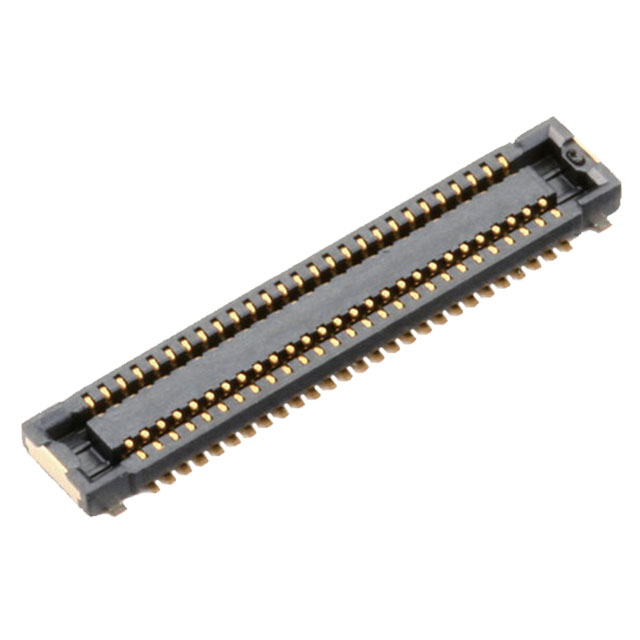

AXF5A5412

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 54POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF5A5412

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Contact Finish	Connector Type	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features
Panasonic Electric Works AXF5A5412	0.8 mm	0.35 mm	0.014 in	2	Surface Mount	Gold	Socket Center Strip Contacts	0.03 in	0.75 mm	54	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.30

General part information

54 Position Connector Socket, Center Strip Contacts Surface Mount Gold
