General part information

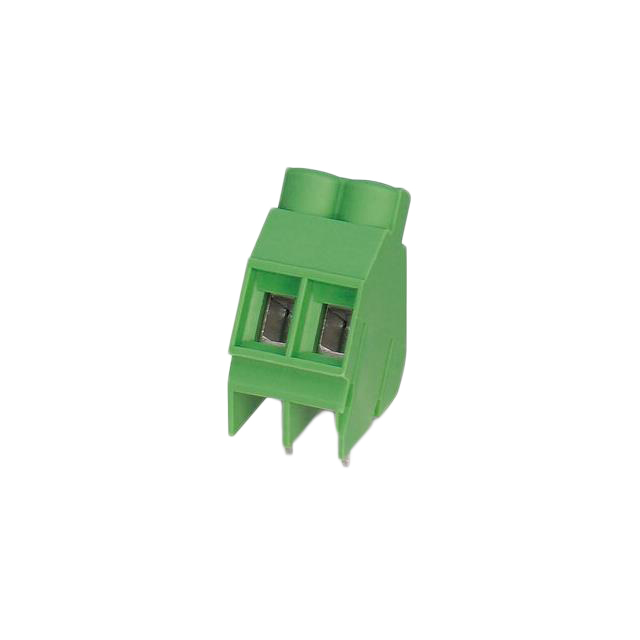

Fixed Terminal Blocks SMKDS 5/ 3-6 35 Z1L BD:1-3
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1704496 |
|---|---|
| Color | Green |
| Current | 32 A |
| Features | Interlocking (Side), Positions Stamped |
| Mating Orientation | 35 ° |
| Mating Orientation | 145 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Positions Per Level | 3 |
| Voltage | 630 V |
| Wire Termination | Screw - Rising Cage Clamp |
Fixed Terminal Blocks SMKDS 5/ 3-6 35 Z1L BD:1-3
| Part | Mounting Type | Features | Color | Wire Termination | Number of Levels | Current | Voltage | Mating Orientation | Mating Orientation | Positions Per Level | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1704496 | Through Hole | Interlocking (Side), Positions Stamped | Green | Screw - Rising Cage Clamp | 1 | 32 A | 630 V | 35 ° | 145 ° | 3 | 0.25 in | 6.35 mm |
