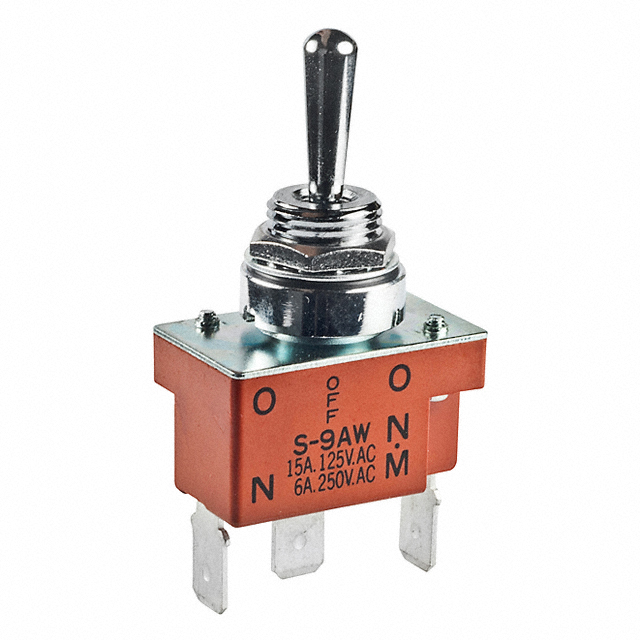

TOGGLE SWITCH, ON-OFF-(ON), SPDT, NON ILLUMINATED, 20 A, PANEL MOUNT

Search across all available documentation for this part.

Active

NKK Switches

TOGGLE SWITCH, ON-OFF-(ON), SPDT, NON ILLUMINATED, 20 A, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	S9AWF

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A, 15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Voltage Rating - DC	Termination Style	Electrical Life	Actuator Type	Circuit	Ingress Protection	Current Rating (Amps)	Bushing Thread	Bushing Thread	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Length [x]	Voltage Rating - AC	Actuator Material	Panel Cutout Dimensions [diameter]
NKK Switches S9AWF	30 V	Quick Connect - 0.250" (6.3mm)	25000 Steps	Standard Round	SPDT	IP67 - Dust Tight Waterproof	15 A 20 A	M12	1 x 1	Non-Illuminated	70 °C	-30 ░C	On-Off-Mom	17.5 mm	125 V	Brass Chrome Plated	12.5 mm
