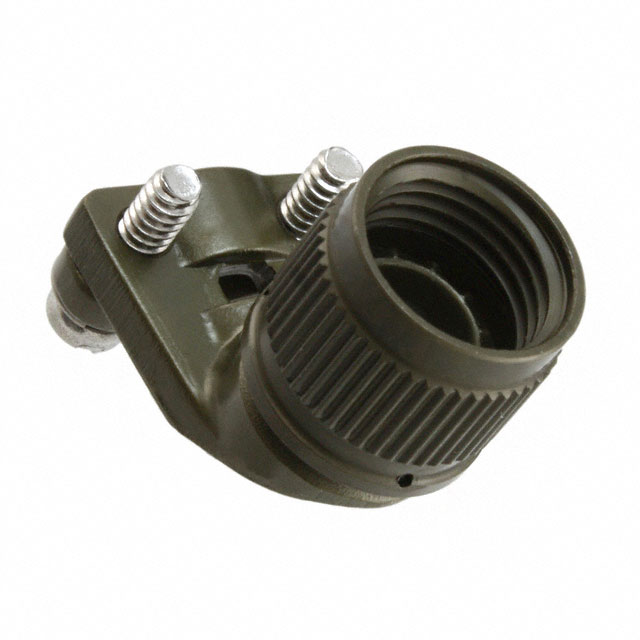

M85049/51-1-8W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ8 OLIVE

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ8 OLIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/51-1-8W	M85049/51 Series

Cable Exit	90 °	90 °
Cable Opening	-	4.75 - 7.26 mm
Cable Opening	-	0.187 - 0.286 in
Cable Opening	-	0.351 - 0.581 in
Cable Opening	-	0.476 - 0.831 in
Cable Opening	-	8.92 - 14.76 mm
Cable Opening	-	21.11 mm
Cable Opening	-	12.09 mm
Cable Opening [Max] [diameter]	5.18 mm	5.18 mm
Cable Opening [Max] [diameter]	0.204 in	0.204 in
Cable Opening [Min] [diameter]	0.125 in	0.125 in
Cable Opening [Min] [diameter]	3.18 mm	3.18 mm
Color	Olive Drab	Silver, Olive Drab
Diameter - Outside [diameter]	15.67 mm	15.67 - 34.16 mm
Diameter - Outside [diameter]	0.617 in	0.617 - 1.345 in
Features	Clamp Screws	Clamp Screws
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Electroless Nickel, Cadmium
Shell Size - Insert	8	8 - 37
Shell Size - Insert	-	12, 14
Shielding	Unshielded	Unshielded
Type	Cable Clamp	Cable Clamp

CONN CABLE CLAMP SZ10 SILVER

Part	Cable Exit	For Use With/Related Products	Color	Shielding	Plating	Material	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India M85049/51-1-10N	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Silver	Unshielded	Electroless Nickel	Aluminum Alloy	Cable Clamp	18.64 mm	0.734 in	10	Clamp Screws	4.75 mm, 7.26 mm	0.187 in, 0.286 in
Amphenol Interconnect India M85049/51-1-20W	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Olive Drab	Unshielded	Cadmium	Aluminum Alloy	Cable Clamp	34.16 mm	1.345 "	20, 37	Clamp Screws			0.581 in	0.831 in	14.76 mm	21.11 mm
Amphenol Interconnect India M85049/51-1-14N	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Silver	Unshielded	Electroless Nickel	Aluminum Alloy	Cable Clamp	25 mm	0.984 "		Clamp Screws			0.351 in	0.476 in	8.92 mm		12.09 mm	12, 14
Amphenol Interconnect India M85049/51-1-8W	90 °	MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III	Olive Drab	Unshielded	Cadmium	Aluminum Alloy	Cable Clamp	15.67 mm	0.617 in	8	Clamp Screws									5.18 mm	0.125 in	0.204 in	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 8
