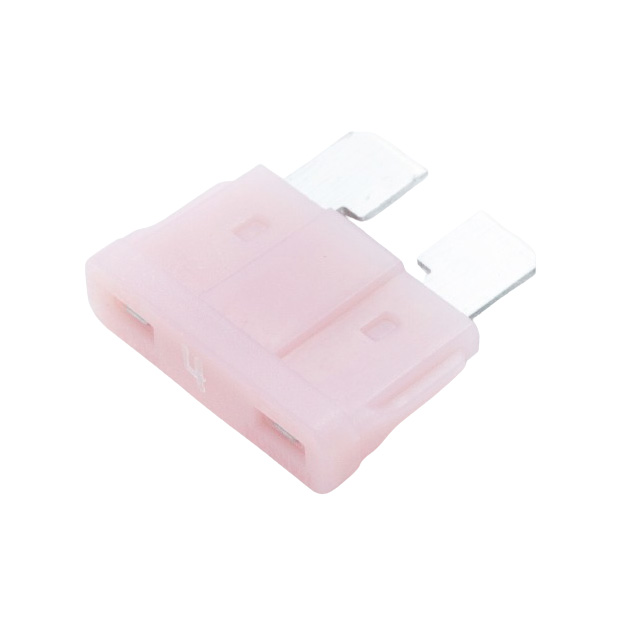

ANR-I-4A
ActiveOptiFuse
FUSE AUTO 4A 32VDC BLADE ATO/ATC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANR-I-4A | ANR-I Series |
|---|---|---|
| Approval Agency | ISO, SAE | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Pink | Red, Violet, Tan, Yellow, Green, Blue, Clear, Brown, Pink |
| Current Rating (Amps) | 4 A | 3 - 40 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | ATO, Blade, ATC | ATO, Blade, ATC |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 19.3 mm | 19.3 mm |
| Size / Dimension [x] | 0.76 " | 0.76 " |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [z] | 0.494 in | 0.494 in |
| Size / Dimension [z] | 12.54 mm | 12.54 mm |
| Voltage Rating - DC | 32 V | 32 V |
ANR-I Series
FUSE AUTO 10A 32VDC BLADE ATO
| Part | Approval Agency | Fuse Type | Voltage Rating - DC | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Response Time | Breaking Capacity @ Rated Voltage | Package / Case | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANR-I-10A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 10 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Red |
OptiFuse ANR-I-3A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 3 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Violet |
OptiFuse ANR-I-5A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 5 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Tan |
OptiFuse ANR-I-20A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 20 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Yellow |
OptiFuse ANR-I-30A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 30 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Green |
OptiFuse ANR-I-15A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 15 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Blue |
OptiFuse ANR-I-25A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 25 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Clear |
OptiFuse ANR-I-7.5A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 7.5 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Brown |
OptiFuse ANR-I-4A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 4 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder | Pink |
OptiFuse ANR-I-40A | ISO, SAE | Automotive | 32 V | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | 40 A | Fast Blow | 1 kA | ATC, ATO, Blade | Requires Holder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.86 | |
| 10 | $ 1.77 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.24 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 1.10 | |||
Description
General part information
ANR-I Series
4 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
