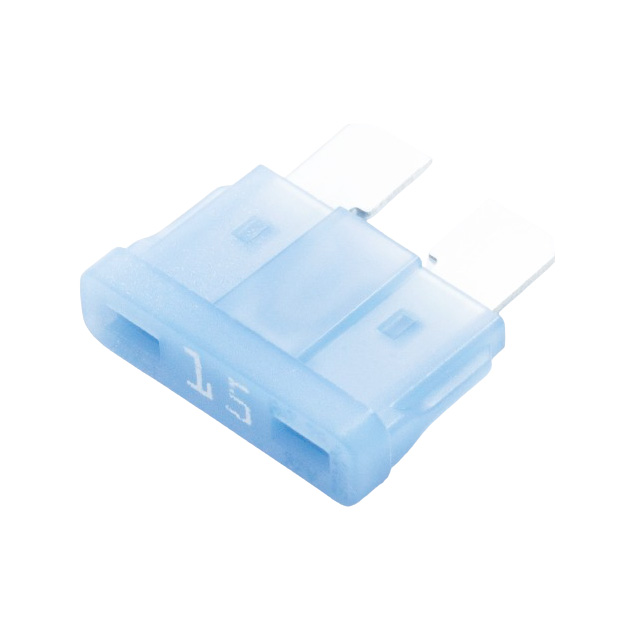

ANR-I-15A

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE ATO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR-I-15A

Active

OptiFuse

FUSE AUTO 15A 32VDC BLADE ATO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.51

Description

General part information

ANR-I Series

15 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANR-I-15A	ANR-I Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Blue	Red, Violet, Tan, Yellow, Green, Blue, Clear, Brown, Pink
Current Rating (Amps)	15 A	3 - 40 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	ATO, Blade, ATC	ATO, Blade, ATC
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	19.3 mm	19.3 mm
Size / Dimension [x]	0.76 "	0.76 "
Size / Dimension [y]	0.197 "	0.197 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [z]	0.494 in	0.494 in
Size / Dimension [z]	12.54 mm	12.54 mm
Voltage Rating - DC	32 V	32 V

ANR-I Series

FUSE AUTO 10A 32VDC BLADE ATO

Part	Approval Agency	Fuse Type	Voltage Rating - DC	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Response Time	Breaking Capacity @ Rated Voltage	Package / Case	Mounting Type	Color
OptiFuse ANR-I-10A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	10 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Red
OptiFuse ANR-I-3A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	3 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Violet
OptiFuse ANR-I-5A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	5 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Tan
OptiFuse ANR-I-20A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	20 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Yellow
OptiFuse ANR-I-30A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	30 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Green
OptiFuse ANR-I-15A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	15 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Blue
OptiFuse ANR-I-25A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	25 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Clear
OptiFuse ANR-I-7.5A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	7.5 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Brown
OptiFuse ANR-I-4A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	4 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder	Pink
OptiFuse ANR-I-40A	ISO, SAE	Automotive	32 V	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	40 A	Fast Blow	1 kA	ATC, ATO, Blade	Requires Holder
