Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IDB003V1 |
|---|---|
| For Use With/Related Products | BlueNRG |
| Frequency | 2.4 GHz |
| Supplied Contents | Board(s) |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-IDB003V1 Series

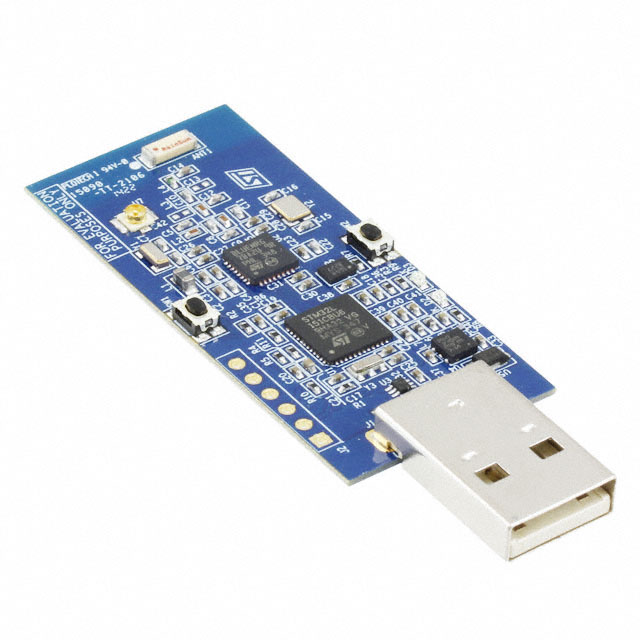

The STEVAL-IDB003V1 is an evaluation board based on BlueNRG, a low power Bluetooth® Smart IC, compliant with the Bluetooth® 4.0 specifications and supporting both master and slave roles.
The STEVAL-IDB003V1 features a low power microcontroller STM32L on board. It is primarily meant to interface with BlueNRG but is also available for custom application development. The STEVAL-IDB003V1 has a USB connector for PC GUI interaction and firmware update.
The footprint for a JTAG connector is available on the STEVAL-IDB003V1. When a JTAG connector is soldered (the connector is not mounted on the STEVAL-IDB003V1) it enables users developing a custom firmware on the STM32L microcontroller.
