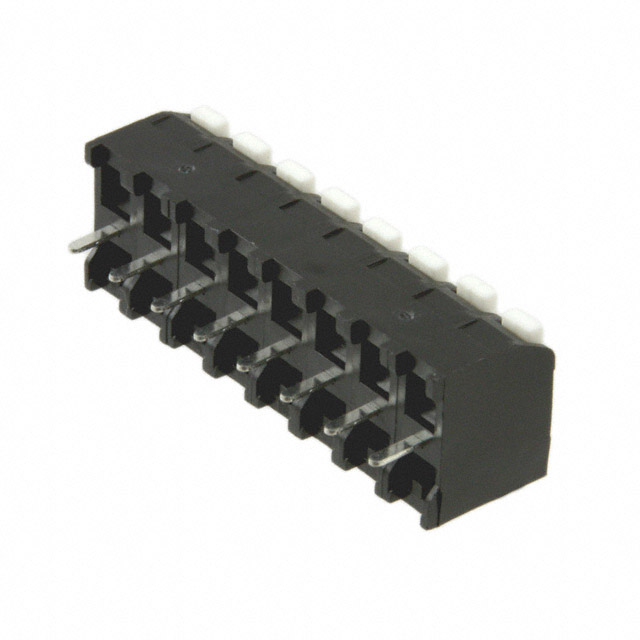

1-1437671-1
ObsoleteTE Connectivity Raychem Cable Protection
10A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK
Deep-Dive with AI
Search across all available documentation for this part.
1-1437671-1
ObsoleteTE Connectivity Raychem Cable Protection
10A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1437671-1 |
|---|---|
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 10 A |
| Features | Lever Actuated |
| Housing Material | Polyester Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature | 130 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 8 |
| Voltage | 150 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1437671 Series
8 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Documents
Technical documentation and resources
No documents available
