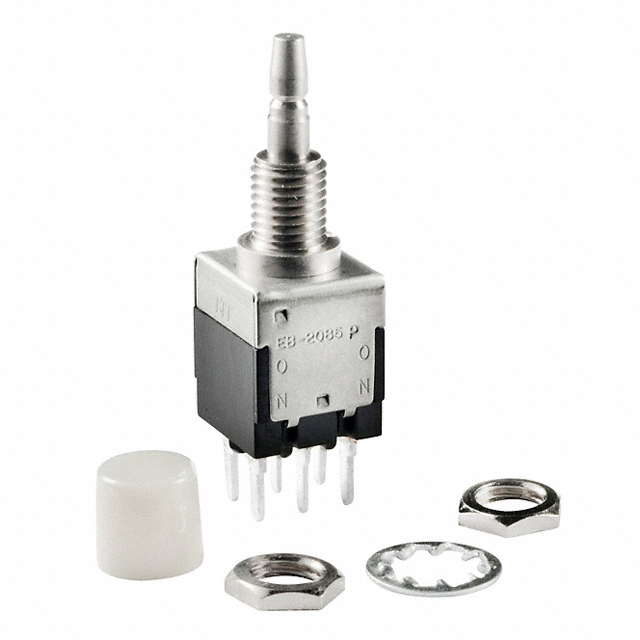

EB2061P-BB

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EB2061P-BB

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2061P-BB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	125 V

EB2061P Series

Part	Current Rating (Amps)	Actuator Type	Electrical Life	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Color - Actuator/Cap	Circuit	Mechanical Life	Features	Mounting Type	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Actuator Marking	Termination Style	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]
NKK Switches EB2061P-B-J21A	3 A	Button Square	25000 Steps	-10 °C	158 °F	Standard	White	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	15 mm	12.5 mm	On-Mom	No Marking	PC Pin
NKK Switches EB2061P-B-J24ACC	3 A	Button Square	25000 Steps	-10 °C	158 °F	Illuminated Standard	White	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	18.4 mm	15 mm	On-Mom	No Marking	PC Pin	LED Red	1.9 VDC
NKK Switches EB2061P-BB	3 A	Button Round	25000 Steps	-10 °C	158 °F	Standard	White	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Rear	125 V			On-Mom	No Marking	PC Pin			0.25 in
NKK Switches EB2061P-CA	3 A	Button Round	25000 Steps	-10 °C	158 °F	Standard	Black	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Rear	125 V			On-Mom	No Marking	PC Pin			0.25 in
NKK Switches EB2061P-A-J21A	3 A	Button Square	25000 Steps	-10 °C	158 °F	Standard	Black	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	15 mm	12.5 mm	On-Mom	No Marking	PC Pin
NKK Switches EB2061P-A-J23ACF	3 A	Button Square	25000 Steps	-10 °C	158 °F	Illuminated Standard	Black	DPDT	100000 Cycles	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	18.4 mm	15 mm	On-Mom	No Marking	PC Pin	Green/Red LED	2 VDC 2.25 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.15
		10	$ 4.63
		25	$ 4.40
		50	$ 4.22
		100	$ 4.10
Newark	Each	1	$ 13.83
		5	$ 12.90
		10	$ 11.87
		25	$ 10.83
		50	$ 9.79
		100	$ 8.65
		250	$ 7.77

Description

General part information

EB2061P Series

Pushbutton Switch DPDT Standard Panel Mount, Rear
