TRASM4MX

Active

Switchcraft Inc.

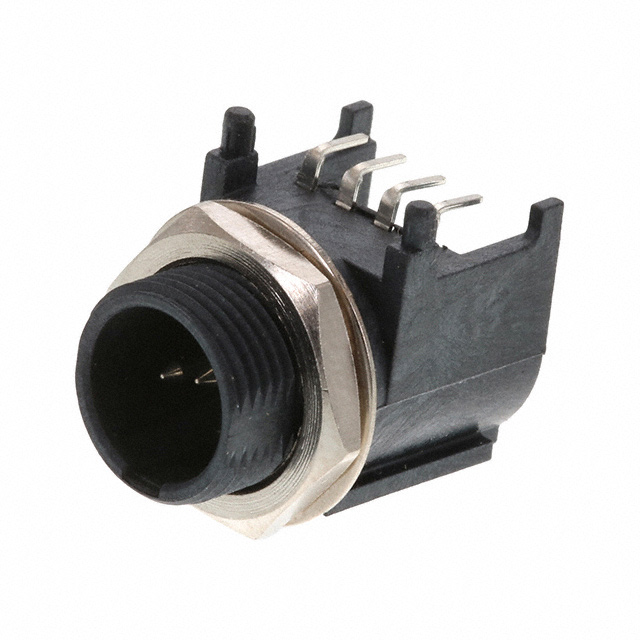

CONN RCPT MALE MINI XLR 4P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 4P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TRASM4MX	TRASM4 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Positions	4	4
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN RCPT MALE MINI XLR 4P SLDR

Part	Features	Applications	Orientation	Contact Material	Insert Material	Mounting Feature	Shell Size - Insert	Fastening Type	Termination	Connector Type	Mounting Type	Primary Material	Current Rating (Amps)	Number of Positions	Color
Switchcraft Inc. TRASM4MSX	Board Guide	Audio, Medical, Testing Equipment & Measurement	Keyed	Brass	Thermoplastic	Bulkhead - Front Side Nut	Mini XLR	Latch Lock	Solder	Male Pins, Receptacle	Surface Mount, Right Angle	Plastic	5 A	4	Black
Switchcraft Inc. TRASM4MX	Board Guide	Audio, Medical, Testing Equipment & Measurement	Keyed	Brass	Thermoplastic	Bulkhead - Front Side Nut	Mini XLR	Latch Lock	Solder	Male Pins, Receptacle	Surface Mount, Right Angle	Plastic	5 A	4	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
