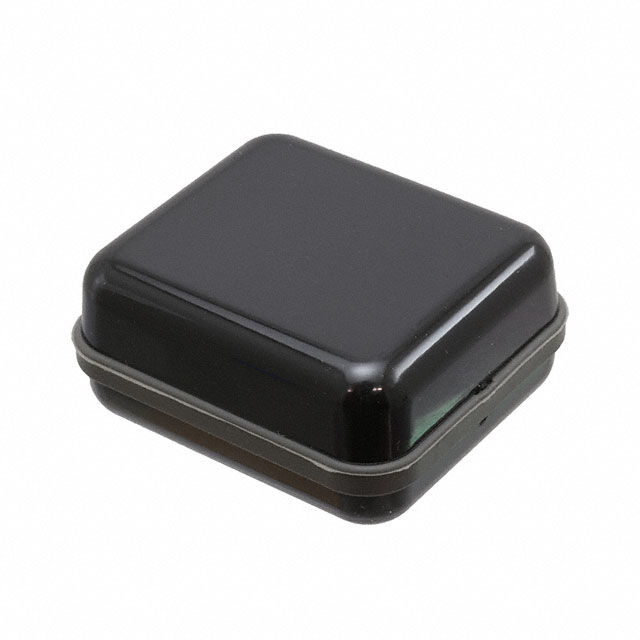

CX25ABKAGM

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Search across all available documentation for this part.

Active

Serpac

ENCLOSURE PLAS 1.68"L X 1.45"W

Technical Specifications

Parameters and characteristics for this part

Specification	CX25ABKAGM

Area (L x W)	2.43 in²
Area (L x W)	15.7 cm²
Color	Gunmetal, Black
Container Type	Enclosure
Design	Cover Included, Hand Held
Height [z]	20.32 mm
Height [z]	0.8 in
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-2
Ratings	NEMA 4X, IP67, 13, 12
Size / Dimension [x]	42.67 mm
Size / Dimension [x]	1.68 "
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.83 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material Flammability Rating	Material	Thickness	Thickness	Container Type	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings
Serpac CX25ABKANO	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black Neon Orange	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKAOR	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black Orange	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKAGM	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black Gunmetal	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKAYL	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure		15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKABL	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black Blue	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKANG	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black Neon Green	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X
Serpac CX25ABKABK	UL94 V-2	Plastic Polycarbonate	2.03 mm	0.08 "	Enclosure	Black	15.7 cm²	2.43 in²	20.32 mm	0.8 in	Cover Included Hand Held	1.45 in	42.67 mm	1.68 "	36.83 mm	12 13 IP67 NEMA 4X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.70

General part information

Enclosure Plastic, Polycarbonate Black, Gunmetal Hand Held, Cover Included 1.680" L x 1.450" W (42.67mm x 36.83mm) X 0.800" (20.32mm)

Technical documentation and resources

No documents available
