3135-16-1-0500-008-1-TS

Active

CnC Tech, LLC

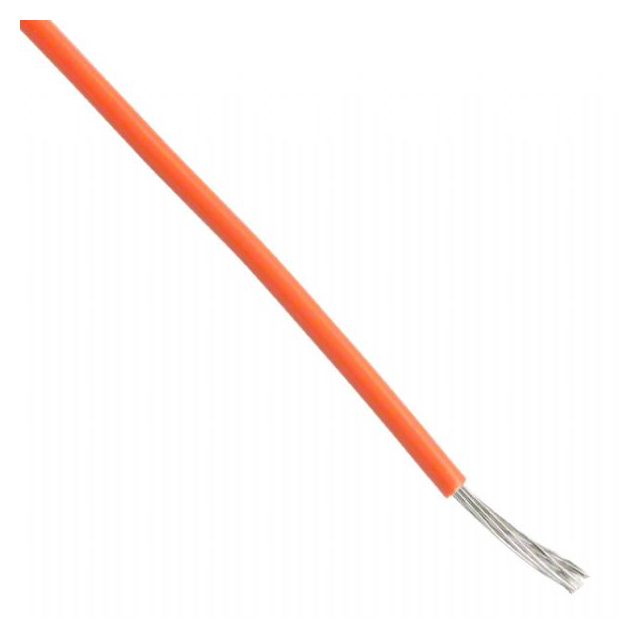

HOOK-UP STRND 16AWG ORN 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3135-16-1-0500-0XX-1-TS Datasheet Before 22/03

3135-16-1-0500-008-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 16AWG ORN 25'

Deep-Dive with AI

DocumentsDatasheet 3135-16-1-0500-0XX-1-TS Datasheet Before 22/03

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3135-16-1-0500-008-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26
Conductor Strand [diameter]	0.01 in
Features	Oil Resistant, High Temperature
Jacket (Insulation) Diameter [diameter]	3.02 mm
Jacket (Insulation) Diameter [diameter]	0.119 in
Jacket (Insulation) Material	Silicone Rubber
Jacket (Insulation) Thickness	0.76 mm
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Orange
Length	3000 "
Length	76.2 m
Length [x]	25 ft
Length [x]	7.62 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3135
Voltage	600 V
Wire Gauge	16 AWG

3135-16 Series

Part	Features	Conductor Material	Jacket Color	Wire Gauge	Length	Length [x]	Ratings	Jacket (Insulation) Material	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Spool Size	Spool Size
CnC Tech, LLC 3135-16-1-0500-003-1-TS	High Temperature Oil Resistant	Copper Tinned	Yellow	16 AWG	15.24 m 76.2 m	25 ft 50 ft 100 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 30.5 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm
CnC Tech, LLC 3135-16-1-0500-005-1-TS	High Temperature Oil Resistant	Copper Tinned	Blue	16 AWG	15.24 m 76.2 m	50 ft 100 ft	UL Style 3135	Silicone Rubber	30.5 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm
CnC Tech, LLC 3135-16-1-0500-008-1-TS	High Temperature Oil Resistant	Copper Tinned	Orange	16 AWG	76.2 m	25 ft	UL Style 3135	Silicone Rubber	7.62 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm
CnC Tech, LLC 3135-16-1-0500-004-1-TS	High Temperature Oil Resistant	Copper Tinned	Red	16 AWG	15.24 m 76.2 m	25 ft 50 ft 100 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 30.5 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm
CnC Tech, LLC 3135-16-1-0500-001-1-TS	High Temperature Oil Resistant	Copper Tinned	Black	16 AWG	15.24 m 76.2 m	25 ft 50 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm
CnC Tech, LLC 3135-16-1-0500-011-1-TS	High Temperature Oil Resistant	Copper Tinned	Green Yellow	16 AWG	15.24 m 76.2 m	25 ft 50 ft 100 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 30.5 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm 0.8 mm	0.031 in 0.762 mm	500 '	152.4 m
CnC Tech, LLC 3135-16-1-0500-006-1-TS	High Temperature Oil Resistant	Copper Tinned	Brown	16 AWG	76.2 m	25 ft 100 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 30.5 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm 0.8 mm	0.031 in 0.762 mm
CnC Tech, LLC 3135-16-1-0500-007-1-TS	High Temperature Oil Resistant	Copper Tinned	Green	16 AWG	15.24 m 76.2 m	25 ft 50 ft 500 '	UL Style 3135	Silicone Rubber	7.62 m 152.4 m	3.02 mm	0.119 in	Hook-Up	200 °C	-30 ░C	600 V	3000 "	26	0.01 in	0.76 mm	0.762 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 153.20
		1	$ 19.55
		2	$ 18.57
		2	$ 145.13
		4	$ 138.87
		4	$ 17.70
		10	$ 129.91
		10	$ 16.63
		20	$ 15.76
		20	$ 123.63
		40	$ 117.36
		40	$ 15.07
		100	$ 14.10
		200	$ 13.42
		400	$ 12.74

Description

General part information

3135-16 Series

16 AWG Hook-Up Wire 26/0.0100" Orange 600V 25.00' (7.62m)

Documents

Technical documentation and resources

Datasheet

3135-16-1-0500-0XX-1-TS Datasheet Before 22/03

Datasheet
