FGN.3F.330.XLC

Active

LEMO

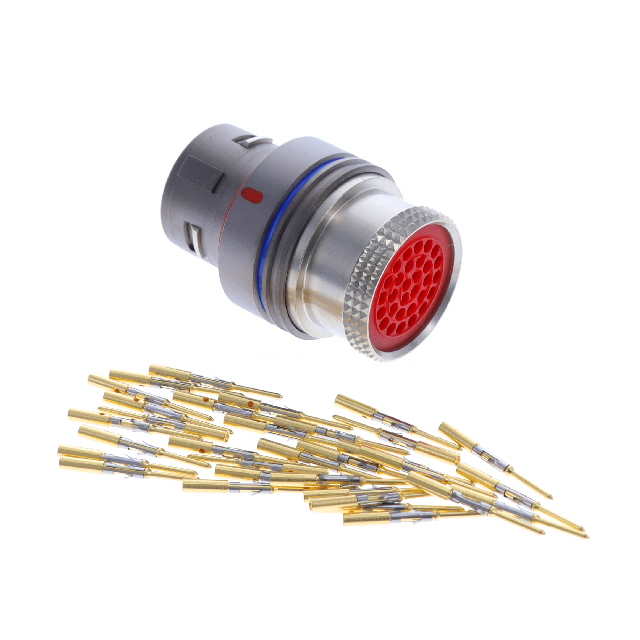

CONN PLUG MALE 30POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGN.3F.330.XLC

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 129.12
		10	$ 118.48
		25	$ 113.93
		50	$ 110.13

Description

General part information

FGN.3F Series

30 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.3F.330.XLC	FGN.3F Series

Applications	Aerospace	Aerospace
Cable Opening [custom]	0.63 in	0.63 in
Cable Opening [custom]	16 mm	16 mm
Color	Gray	Gray, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	3.5 A	3.5 - 5.5 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	30	22 - 30
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-55 - -15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	330	322 - 330
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGN.3F Series

CONN PLUG MALE 30POS GOLD CRIMP

Part	Connector Type	Fastening Type	Ingress Protection	Contact Material	Number of Positions	Current Rating (Amps)	Shell Finish	Orientation	Shell Size - Insert	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Material	Termination	Color	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Mounting Type	Insert Material
LEMO FGN.3F.330.XLC	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	30	3.5 A	Nickel	N	330	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.322.XLBS	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	22 positions	5.5 Amps	Nickel	N	322	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.330.XLCF	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	30	3.5 A	Nickel	N	330	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.322.XLC	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	22 positions	5.5 Amps	Nickel	N	322	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.330.XLCS	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	30	3.5 A	Nickel	N	330	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.330.CLC	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	30	3.5 A	Chrome	N	330	Shielded	200 °C	-55 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Brass	Crimp	Silver	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
LEMO FGN.3F.322.XLCS	Male Pins, Plug	Push-Pull	IP67 - Dust Tight, Waterproof	Brass	22 positions	5.5 Amps	Nickel	N	322	Shielded	200 °C	-15 °C	Aerospace	1 µm	39.4 µin	UL94 V-0	Aluminum Alloy	Crimp	Gray	Metal	0.63 in	16 mm	Gold	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
