AWH30G-0202-IDC-R

Obsolete

Assmann WSW Components

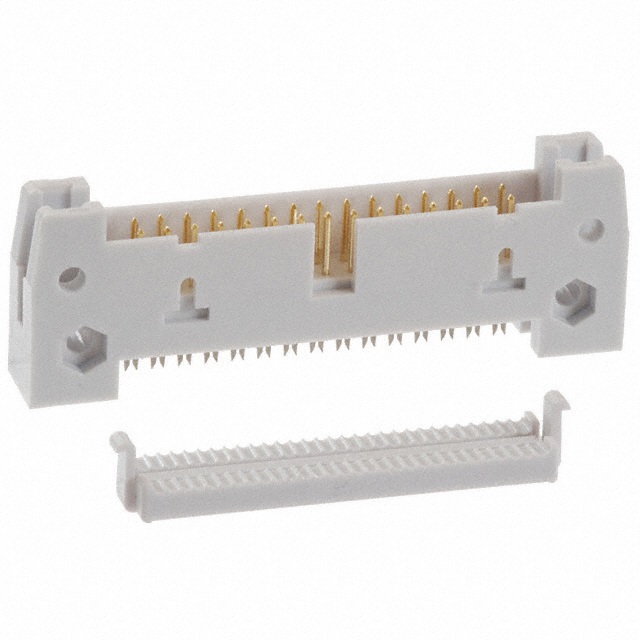

CONN HEADER 30POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AWH30G-0202-IDC-R

Obsolete

Assmann WSW Components

CONN HEADER 30POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AWH30G-0202-IDC-R

Cable Termination	IDC
Color	Gray
Connector Type	Header
Contact Finish	Gold
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

AWH 30G Series

Part	Contact Shape	Current Rating (Amps)	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Features	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Type	Number of Rows	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Style	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Wire Type	Cable Termination	Color	Row Spacing [x]	Row Spacing	Contact Finish
Assmann WSW Components AWH 30G-0222-T	Square	3 A	Gray	2.54 mm	0.1 in	Gold	Keying Slot	Shrouded - 4 Wall	Latch Lock/Eject Hooks Short	0.13 in	3.3 mm	Through Hole	Brass	17 mm	0.669 "	Male Pin	2	Solder	0.1 in	2.54 mm	Flash	Tin	Header	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	All	30	-40 °C	105 ░C
Assmann WSW Components AWH30G-E232-IDC-R							Feed Through		Latch Lock/Eject Hooks Long							Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH30G-0202-IDC-R							Feed Through					Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH 30G-0232-IDC							Feed Through		Latch Lock/Eject Hooks Long			Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH30G-0202-T-R	Square	3 A	Gray	2.54 mm	0.1 in	Gold	Keying Slot	Shrouded - 4 Wall	Push-Pull	0.13 in	3.3 mm	Through Hole	Brass	17 mm	0.669 "	Male Pin	2	Solder	0.1 in	2.54 mm	Flash	Tin	Header	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	All	30	-40 °C	105 ░C
Assmann WSW Components AWH30G-0232-IDC-R							Feed Through		Latch Lock/Eject Hooks Long			Free Hanging (In-Line)				Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold
Assmann WSW Components AWH 30G-E222-IDC							Feed Through		Latch Lock/Eject Hooks Short							Male Pin	2						Header					30			2.54 mm	0.1 in	Ribbon Cable	IDC	Gray	0.1 in	2.54 mm	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AWH 30G Series

30 Position Rectangular Header Connector IDC Gold
