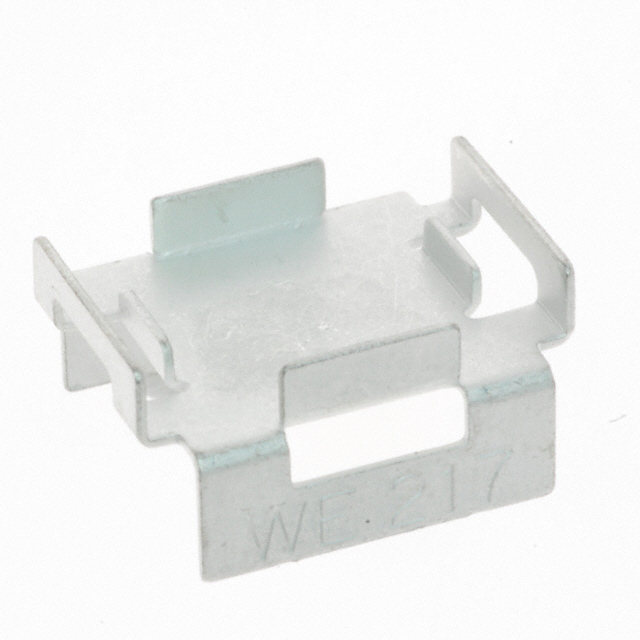

217-36CTE6

Active

Wakefield-Vette

HEATSINK DPAK SMT TIN PLATED

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK DPAK SMT TIN PLATED

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	217-36CTE6	217-36 Series

Attachment Method	SMD Pad	SMD Pad
Fin Height [z]	0.36 in	0.36 in
Fin Height [z]	9.14 mm	9.14 mm
Length	18.8 mm	18.8 mm
Length	0.74 in	0.74 in
Material	Copper	Copper
Material Finish	Tin	Tin
Package Cooled	TO-220, SOL-20, SOT-223, D²Pak (TO-263)	TO-220, SOL-20, SOT-223, D²Pak (TO-263)
Power Dissipation @ Temperature Rise	55 °C, 1 W	1 - 55 °C
Shape	Rectangular, Fins	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	16 °C/W, 200 LFM	16 - 200 °C/W
Thermal Resistance @ Natural	55 °C/W	55 °C/W
Type	Top Mount	Top Mount
Width	15.24 mm	15.24 mm
Width	0.6 in	0.6 in

HEATSINK DPAK SMT TIN PLATED

Part	Width	Width	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise	Package Cooled	Shape	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Material Finish	Thermal Resistance @ Natural	Material	Length	Length
Wakefield-Vette 217-36CTE6	15.24 mm	0.6 in	0.36 in	9.14 mm	1 W, 55 °C	D²Pak (TO-263), SOL-20, SOT-223, TO-220	Rectangular, Fins	SMD Pad	16 °C/W, 200 LFM	Top Mount	Tin	55 °C/W	Copper	18.8 mm	0.74 in
Wakefield-Vette 217-36CTRE6	15.24 mm	0.6 in	0.36 in	9.14 mm	1 W, 55 °C	D²Pak (TO-263), SOL-20, SOT-223, TO-220	Rectangular, Fins	SMD Pad	16 °C/W, 200 LFM	Top Mount	Tin	55 °C/W	Copper	18.8 mm	0.74 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink D²Pak (TO-263), SOL-20, SOT-223, TO-220 Copper 1.0W @ 55°C Top Mount
