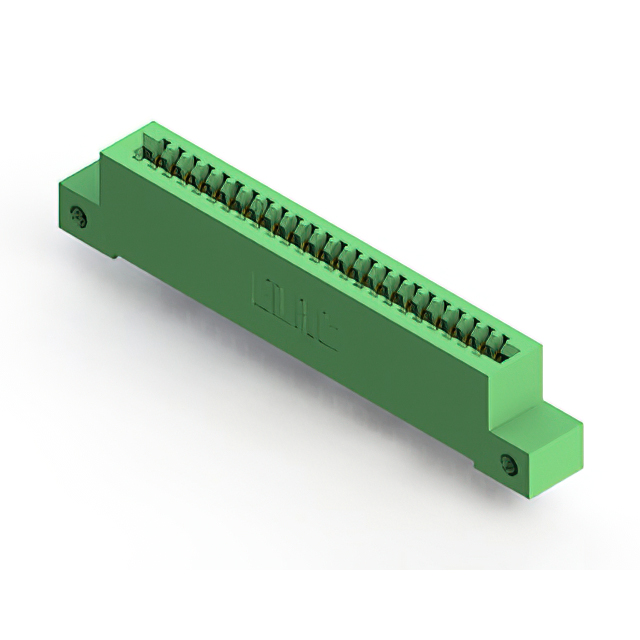

842-024-500-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-024-500-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 24POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-024-500-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
842-024 Series
...
| Part | Termination | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Type | Card Type | Material - Insulation | Number of Positions | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Color | Number of Rows | Contact Material | Mounting Type | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Wire Wrap | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | |||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole Right Angle | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Solder Eyelet(s) | 2.54 mm | 0.1 in | 24 | Cantilever | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 24 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 1 | Copper Alloy | Through Hole | Single | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " |
EDAC Inc. | Solder | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " |
EDAC Inc. | Solder Eyelet(s) | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole Right Angle | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | 24 | Cantilever | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 24 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 1 | Copper Alloy | Through Hole | Single | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in |
EDAC Inc. | Wire Wrap | 2.54 mm | 0.1 in | 24 | Cantilever | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 24 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 1 | Copper Alloy | Through Hole | Single | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Wire Wrap | 2.54 mm | 0.1 in | 24 | Cantilever | Non Specified - Single Edge | Diallyl Phthalate (DAP) | 24 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 1 | Copper Alloy | Through Hole | Single | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | |||
EDAC Inc. | Solder | 2.54 mm | 0.1 in | 12 | Cantilever | Non Specified - Dual Edge | Diallyl Phthalate (DAP) | 24 | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Green | 2 | Copper Alloy | Through Hole | Dual | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
