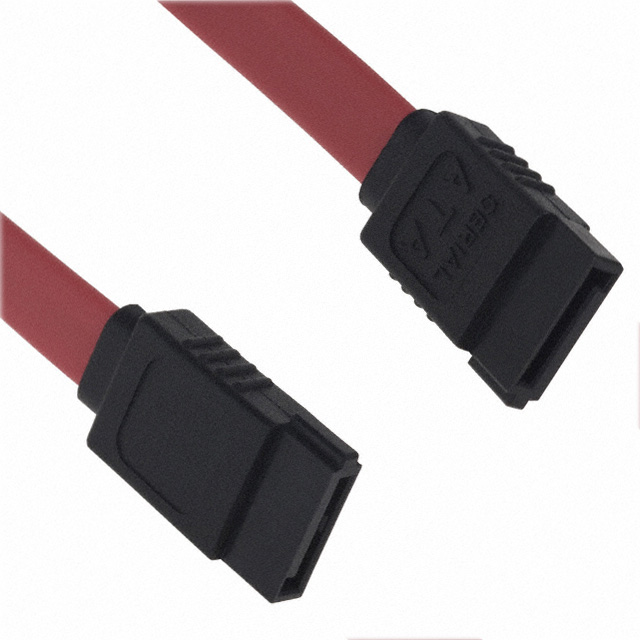

AK-SATA-030

Active

Assmann WSW Components

CABLE ASSEMBLY SATA 0.3M 26AWG SERIAL ATA TO SERIAL ATA 7 TO 7 POS M-M BAG

Search across all available documentation for this part.

Active

Assmann WSW Components

CABLE ASSEMBLY SATA 0.3M 26AWG SERIAL ATA TO SERIAL ATA 7 TO 7 POS M-M BAG

Technical Specifications

Parameters and characteristics for this part

Part	Cable Type	Length	Length	Connector Type	Usage	Shielding	Color	Length [x]	Length [x]	Cable Connectors	Wire Gauge	Number of Positions	Gender	Fastening Type	Length [x]
Assmann WSW Components AK-SATA-PC-015	Individual	0.49 ft	150 mm	Rectangular 04 pos Plug to SATA 15 pos Plug	Internal Power Cable	Unshielded	Multiple
Assmann WSW Components AK-SATA-SP-050	Flat Individual			SATA 07 pos Female to Female SATA 15 pos Female to Rectangular 04 pos Plug	Internal Power Cable	Shielded	Multiple	1.64 ft	500 mm
Assmann WSW Components AK-SATA-075DL	Flat			Receptacle to Receptacle Right Angle	External	Shielded	Red	2.46 ft	0.75 m	SATA	26 AWG	7	Female to Female	Push-Pull
Assmann WSW Components AK-SATA-075	Flat			Receptacle to Receptacle	External	Shielded	Red	2.46 ft	0.75 m	SATA	26 AWG	7	Female to Female	Push-Pull
Assmann WSW Components AK-SATA-SP-075	Flat Individual			SATA 07 pos Female to Female SATA 15 pos Female to Rectangular 04 pos Plug	Internal Power Cable	Shielded	Multiple	2.46 ft	0.75 m
Assmann WSW Components AK-SATA-100	Flat			Receptacle to Receptacle	External	Shielded	Red	3.28 ft	1 m	SATA	26 AWG	7	Female to Female	Push-Pull
Assmann WSW Components AK-SATA-050	Flat			Receptacle to Receptacle	External	Shielded	Red	1.64 ft	500 mm	SATA	26 AWG	7	Female to Female	Push-Pull
Assmann WSW Components AK-SATA-030	Flat			Receptacle to Receptacle	External	Shielded	Red	0.984 '	300 mm	SATA	26 AWG	7	Female to Female	Push-Pull	11.811 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position SATA Receptacle to Receptacle 0.984' (300.00mm, 11.811") Red Shielded
