GC30U Series

Part	Weight	Operating Temperature (Max)	Approval Agency	Mounting Type	Battery Chemistry	Features	Charge Current - Max	Voltage - Nominal	Power - Max	Termination Style	Termination I.D.	Termination O.D.	Termination Length	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Type	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Number of Cells

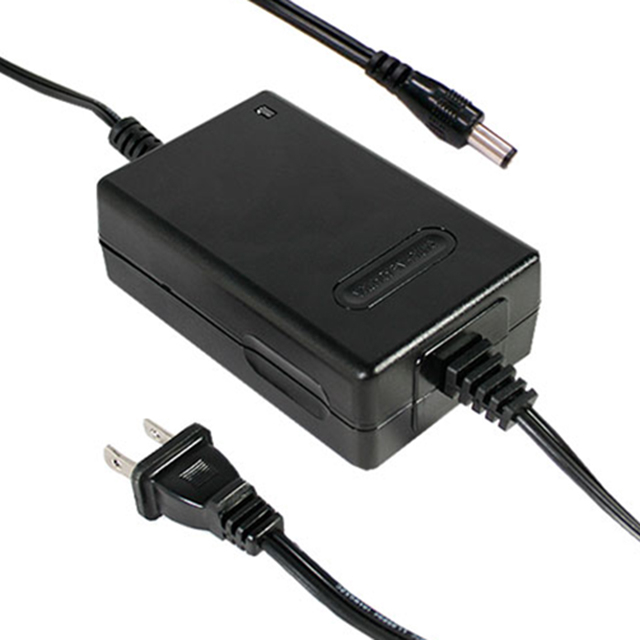

MEAN WELL USA Inc. GC30U-0P1J	405 g	50 °C	CB CE cULus	Desktop	Lead Acid Lithium-Ion	LED Indicator	4 A	4.2 V	16.8 VA	Female	2.1 mm	5.5 mm	11 mm	90 V	264 V	Desktop	1.42 in	4.25 in	2.64 in	1
MEAN WELL USA Inc. GC30U-11P1J	405 g	50 °C	CB CE cULus	Desktop	Lead Acid Lithium-Ion	LED Indicator	3 A	7.2 V	21.6 W	Female	2.1 mm	5.5 mm	11 mm	90 V	264 V	Desktop	1.42 in	4.25 in	2.64 in	1
MEAN WELL USA Inc. GC30U-6P1J	405 g	50 °C	CB CE cULus	Desktop	Lead Acid Lithium-Ion	LED Indicator	1.04 A	28.6 V	30 W	Female	2.1 mm	5.5 mm	11 mm	90 V	264 V	Desktop	1.42 in	4.25 in	2.64 in	1
MEAN WELL USA Inc. GC30U-4P1J	405 g	50 °C	CB CE cULus	Desktop	Lead Acid Lithium-Ion	LED Indicator	2.09 A	14.3 V	30 W	Female	2.1 mm	5.5 mm	11 mm	90 V	264 V	Desktop	1.42 in	4.25 in	2.64 in	1
MEAN WELL USA Inc. GC30U-2P1J	405 g	50 °C	CB CE cULus	Desktop	Lead Acid Lithium-Ion	LED Indicator	3 A	8.4 V	25.2 W	Female	2.1 mm	5.5 mm	11 mm	90 V	264 V	Desktop	1.42 in	4.25 in	2.64 in	1
