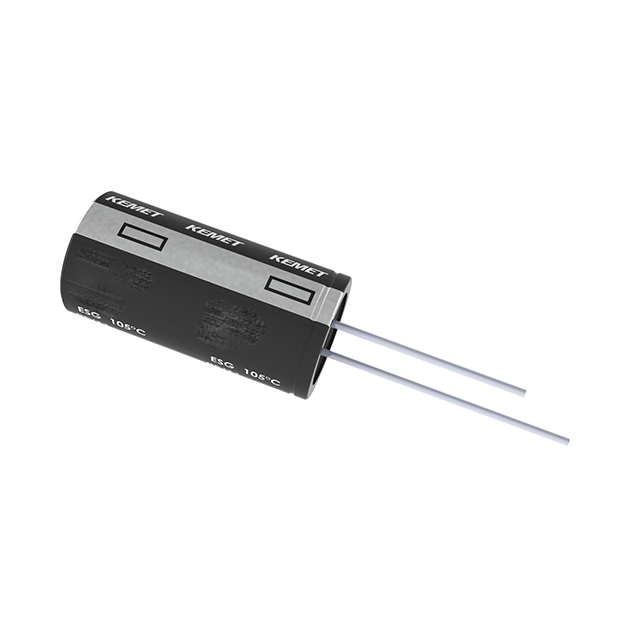

ESX228M025AK4AA

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 25V, 20% +TOL, 20% -TOL, 2200UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 25V, 20% +TOL, 20% -TOL, 2200UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	ESX228M025AK4AA

Applications	General Purpose
Capacitance	2200 µF
Height - Seated (Max) [Max] [z]	1.575 in
Height - Seated (Max) [Max] [z]	40 mm
Impedance	54 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.36 A
Ripple Current @ Low Frequency	2.124 A
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Mounting Type	Applications	Lead Spacing	Lead Spacing	Voltage - Rated	Impedance	Tolerance	Ripple Current @ High Frequency	Package / Case	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization
KEMET ESX228M025AK4AA	Through Hole	General Purpose	5 mm	0.197 in	25 VDC	54 mOhms	20 %	2.36 A	Radial Can	5000 Hrs	-40 °C	105 ░C	12 mm	0.472 in	2200 µF	2.124 A	1.575 in	40 mm	Polar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
