PF2002 NA005

Active

ALPHA WIRE

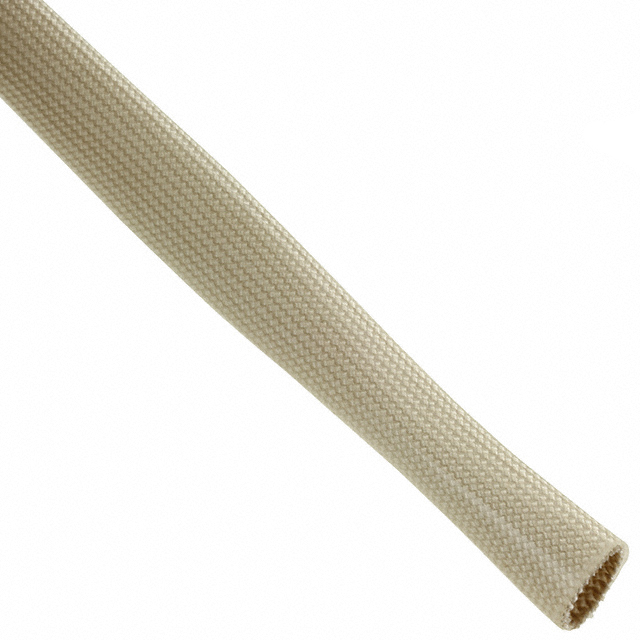

SLEEVING 0.258" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.258" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PF2002 NA005	PF2002 Series

Abrasion Protection	Abrasion Resistant, Fray Resistant	Abrasion Resistant, Fray Resistant
Color	Natural	Natural
Diameter - Inside [diameter]	0.258 in	0.258 in
Diameter - Inside [diameter]	6.55 mm	6.55 mm
Environment Protection	Corrosion Resistant	Corrosion Resistant
Features	Clean Cut	Clean Cut
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Length	-	25 ft
Length	-	7.62 m
Material	Fiberglass, Silicone Coated	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1	UL VW-1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-70 °C	-70 °C
Type	Sleeving	Sleeving
Type Attributes	Braided	Braided
Wall Thickness [custom]	0.51 mm	0.51 mm
Wall Thickness [custom]	0.02 in	0.02 in

SLEEVING 0.258" ID FBRGLASS 100'

Part	Environment Protection	Wall Thickness [custom]	Wall Thickness [custom]	Abrasion Protection	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Material	Length	Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Type	Length [x]	Length [x]
ALPHA WIRE PF2002 NA005	Corrosion Resistant	0.51 mm	0.02 in	Abrasion Resistant, Fray Resistant	Natural	200 °C	-70 °C	UL VW-1	Clean Cut	Fiberglass, Silicone Coated	100 ft	30.48 m	0.258 in	6.55 mm	Braided	Sleeving
ALPHA WIRE PF2002 NA008	Corrosion Resistant	0.51 mm	0.02 in	Abrasion Resistant, Fray Resistant	Natural	200 °C	-70 °C	UL VW-1	Clean Cut	Fiberglass, Silicone Coated			0.258 in	6.55 mm	Braided	Sleeving	25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Natural Fiberglass, Silicone Coated Braided Sleeving 0.258" (6.55mm) 100' (30.48m)
