1-1418437-1

Active

TE Connectivity AMP Connectors

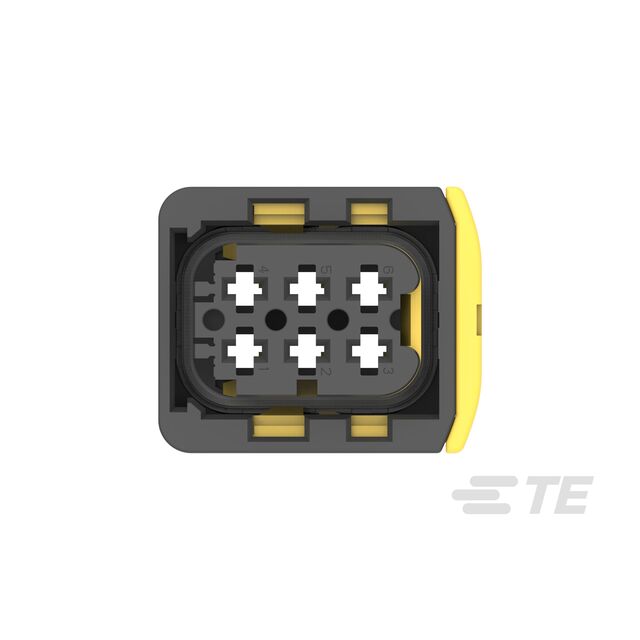

CONN RCPT HSG 6POS 6.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 6.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1418437-1	1418437 Series

Color	Black	Black, Blue, Gray
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Slide-On	Slide-On
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.236 in	0.236 in
Pitch [x]	6 mm	6 mm
Row Spacing [Max]	0.236 in	0.236 in
Row Spacing [Max]	6 mm	6 mm

CONN RCPT HSG 6POS 6.00MM

Part	Note	Row Spacing [Max]	Row Spacing [Max]	Number of Rows	Fastening Type	Color	Contact Type	Contact Termination	Features	Connector Type	Insulation Material	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1-1418437-1	Contacts Not Included	0.236 in	6 mm	2	Slide-On	Black	Female Socket	Crimp	Sealed	Receptacle	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	0.236 in	6 mm	6	140 °C	-40 °C
TE Connectivity AMP Connectors 4-1418437-1	Contacts Not Included	0.236 in	6 mm	2	Slide-On	Blue	Female Socket	Crimp	Sealed	Receptacle	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	0.236 in	6 mm	6	140 °C	-40 °C
TE Connectivity AMP Connectors 2-1418437-1	Contacts Not Included	0.236 in	6 mm	2	Slide-On	Gray	Female Socket	Crimp	Sealed	Receptacle	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	0.236 in	6 mm	6	140 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.236" (6.00mm)
