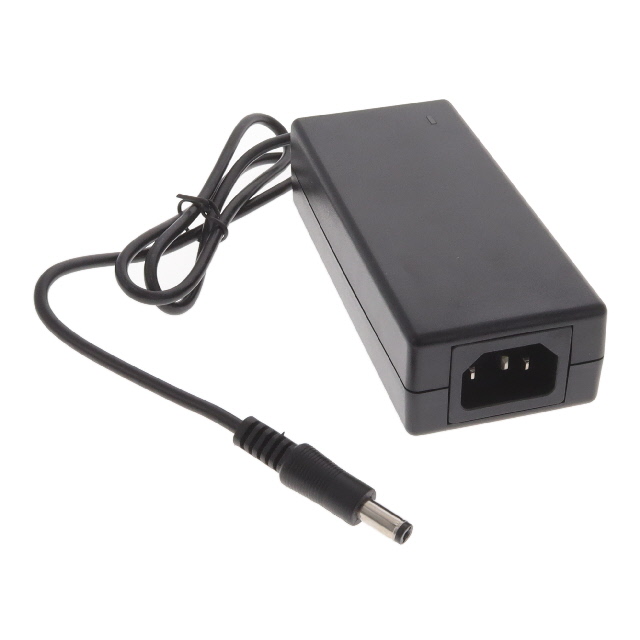

TRH50A120-11E01 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 12V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRH50A120-11E01 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 12V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRH50A120-11E01 VI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus, NEMKO, CE, FCC, GS, TUV |
| Cord Length | 28.35 in |
| Cord Length | 720 mm |
| Current - Output (Max) [Max] | 4.2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 12 mm |
| Polarization | Positive Center |
| Power (Watts) | 50 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.72 in |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 2.05 in |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [z] | 31 mm |
| Size / Dimension [z] | 1.22 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
| Weight | 300.28 g |
| Weight | 0.662 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.64 | |
| 5 | $ 23.58 | |||
| 10 | $ 22.74 | |||
| 25 | $ 21.68 | |||
| 50 | $ 20.91 | |||
| 100 | $ 20.17 | |||
| 250 | $ 19.23 | |||
| 500 | $ 18.55 | |||
Description
General part information
TRH50A120 Series
12V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
