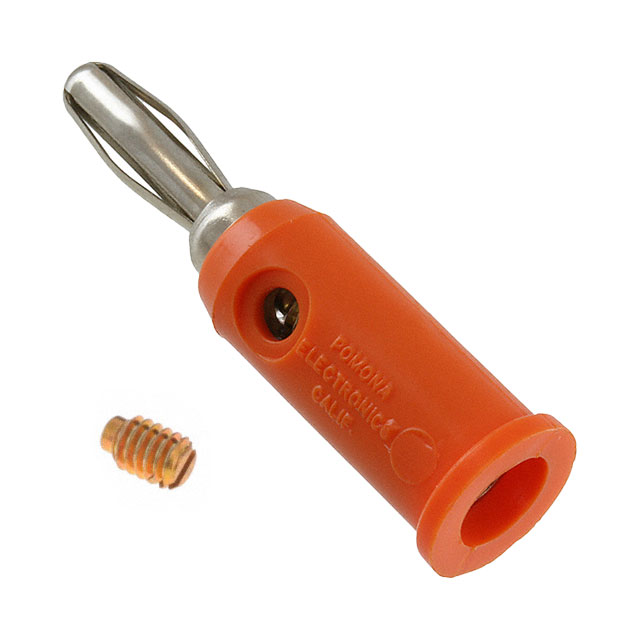

Specification	1325-3

Body Material	PP, Polypropylene
Color	Orange
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Set Screw, Cross Hole
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

1325 Series

Part	Contact Finish	Body Material	Operating Temperature	Contact Material	Gender	Insulation	Plug/Mating Plug Diameter	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Color	Termination	Features
Pomona Electronics 1325-8	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Gray	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-1	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Brown	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-7#	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Violet	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-6#	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Blue	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-6	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Blue	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-3	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Orange	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-4#	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Yellow	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-3#	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Orange	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-0#	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Black	Solderless	Cross Hole Set Screw
Pomona Electronics 1325-2	Nickel	Polypropylene PP	50 °C	Beryllium Copper	Male	Non-Mating End Insulated	Standard Banana	Banana Plug Stackable	18 AWG	22 AWG	Free Hanging (In-Line)	Red	Solderless	Cross Hole Set Screw
