R41Z-EVAL

Active

u-blox

EVAL THREAD BLE 4.2 NXP KW41Z

Search across all available documentation for this part.

Active

u-blox

EVAL THREAD BLE 4.2 NXP KW41Z

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R41Z-EVAL	R41Z Series

Antenna Type	-	Integrated, Trace
Current - Receiving	-	16.2 mA
Current - Transmitting	-	14.2 mA
Data Rate	-	1 Mbps
For Use With/Related Products	R41Z	R41Z
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	512 kB
Memory Size	-	128 kB
Modulation	-	GFSK, O-QPSK
Mounting Type	-	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Package / Case	-	Module
Power - Output	-	3.5 dBm
Protocol	-	Thread, Bluetooth v4.2
RF Family/Standard	-	Bluetooth, 802.15.4
Sensitivity	-	-100 dBm
Serial Interfaces	-	UART, I2C, SPI
Supplied Contents	Board(s)	Board(s)
Type	802.15.4 (Thread), Bluetooth® Smart 4.x Low Energy (BLE), Transceiver	802.15.4 (Thread), Bluetooth® Smart 4.x Low Energy (BLE), Transceiver
Utilized IC / Part	-	KW41Z
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 V

EVAL THREAD BLE 4.2 NXP KW41Z

Part	Supplied Contents	For Use With/Related Products	Frequency	Type	Power - Output	Mounting Type	Current - Receiving	RF Family/Standard	Data Rate	Memory Size [custom]	Memory Size [custom]	Modulation	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Protocol	Current - Transmitting	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Antenna Type	Serial Interfaces	Utilized IC / Part
u-blox R41Z-EVAL	Board(s)	R41Z	2.4 GHz	802.15.4 (Thread), Bluetooth® Smart 4.x Low Energy (BLE), Transceiver
u-blox R41Z-TA-R			2.4 GHz		3.5 dBm	Surface Mount	16.2 mA	802.15.4, Bluetooth	1 Mbps	512 kB	128 kB	GFSK, O-QPSK	-40 °C	105 ░C	Module	Bluetooth v4.2, Thread	14.2 mA	3.6 V	1.7 V	-100 dBm	Integrated, Trace	I2C, SPI, UART	KW41Z

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 99.00

General part information

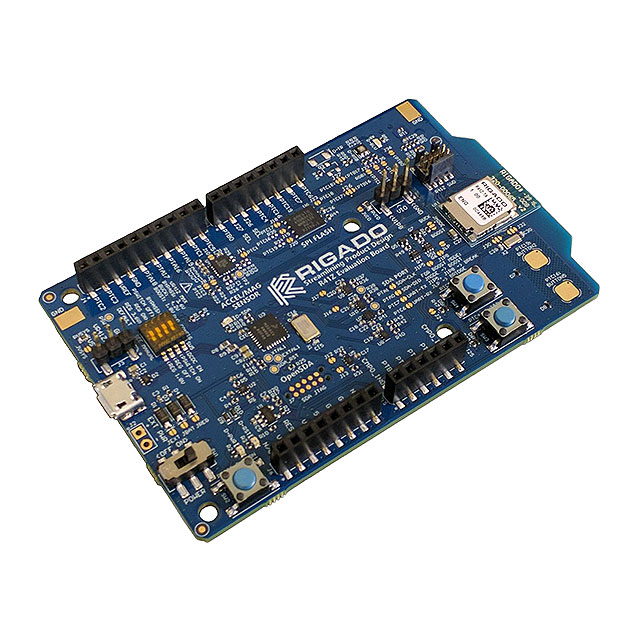

- R41Z Transceiver; 802.15.4 (Thread), Bluetooth® Smart 4.x Low Energy (BLE) 2.4GHz Evaluation Board
