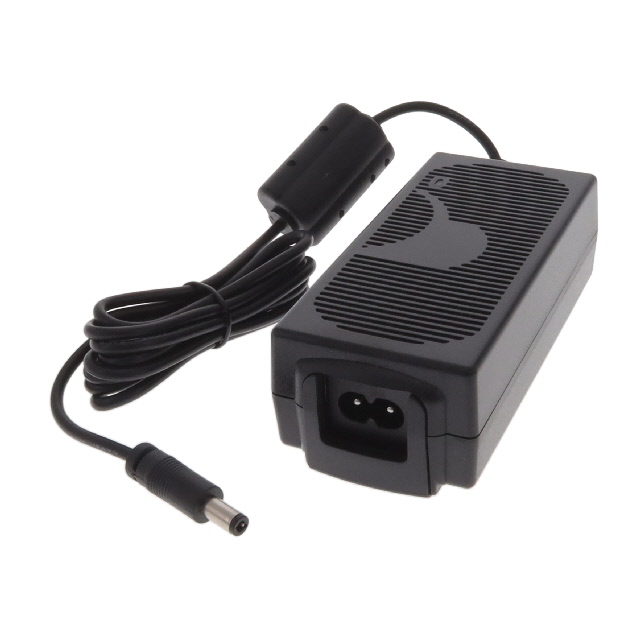

RR9KI2700LCP-IMR6B

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 24V 65W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DSKTP/WALL MT ADPT 24V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	RR9KI2700LCP-IMR6B

Applications	ITE (Commercial), Medical
Approval Agency	VCCI, S-Mark, UKRSepro, PSE, LPS, BSMI, FCC, EAC, CB, CE, ETL, cETLus
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	2.7 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop, Wall Mount
Input Connector	IEC 320-C8, Multi-Blade (Sold Separately)
Input Type	Cord, Multi-Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	53.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [z]	36.6 mm
Size / Dimension [z]	1.44 "
Standard Number	60950-1, 60601-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Cord Length	Cord Length	No Load Power Consumption [Max]	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Output	Input Type	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Form	Region Utilized	Current - Output (Max) [Max]	Input Connector	Applications	Approval Agency
GlobTek, Inc. RR9KI2700LCP-IMR6B	36.6 mm	4.63 in	53.5 mm	1.44 "	117.5 mm	2.11 in	65 W	-20 C	40 °C	CoC Tier 2 Level VI	60.2 in	1.5 m	150 mW	60601-1 60950-1 62368-1	Barrel Plug	2.5 mm 5.5 mm	11 mm	24 V	Cord Multi-Blade	Positive Center	90 VAC	264 VAC	Desktop Wall Mount	International	2.7 A	IEC 320-C8 Multi-Blade (Sold Separately)	ITE (Commercial) Medical	BSMI CB CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 65 W AC/DC External Desktop, Wall Mount (Class II) Adapter Cord, Multi-Blade (Sold Separately) Input
