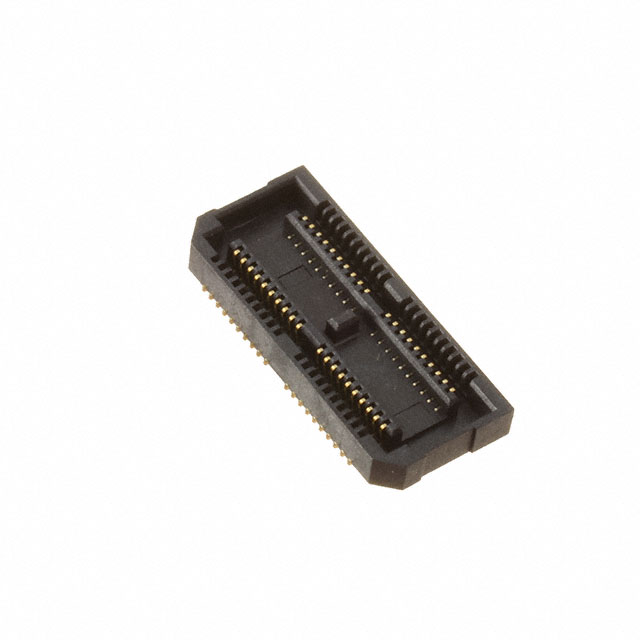

LSH-020-01-G-D-A

Active

Samtec Inc.

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LSH-020-01-G-D-A

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	1.9 mm
Height Above Board	0.075 "
Mated Stacking Heights	2.31 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Connector Type	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]
Samtec Inc. LSH-020-01-G-D-A	Board Guide	10 Áin	0.25 Ám	40	1.9 mm	0.075 "	Surface Mount	2	Center Strip Contacts Receptacle	2.31 mm	Gold	0.5 mm	0.02 in
Samtec Inc. LSH-020-01-H-D-A-K	Board Guide Pick and Place	30 Áin	0.76 Ám	40	1.9 mm	0.075 "	Surface Mount	2	Center Strip Contacts Receptacle	2.31 mm	Gold	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
