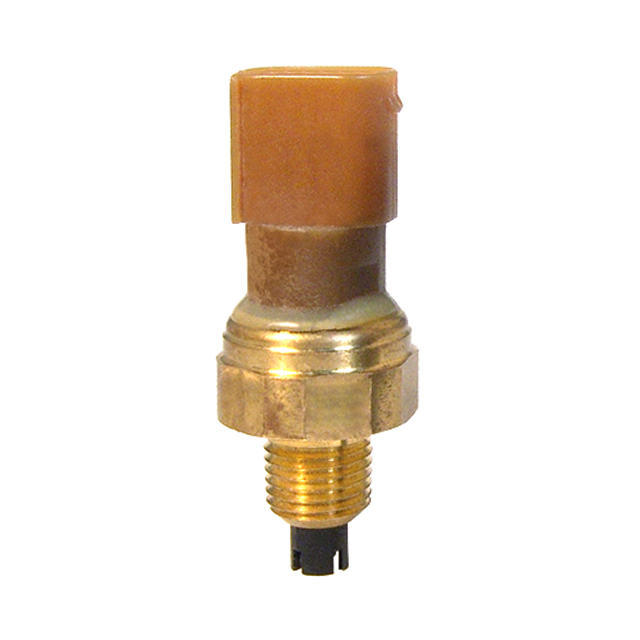

112CP3-9

Active

Sensata Technologies

SENSOR PRES ABS 9-500PSI W/TEMP

Search across all available documentation for this part.

Active

Sensata Technologies

SENSOR PRES ABS 9-500PSI W/TEMP

Technical Specifications

Parameters and characteristics for this part

SENSOR PRES ABS 9-500PSI W/TEMP

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Output [Min]	Output [Max]	Operating Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Accuracy	Applications	Features	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
Sensata Technologies 112CP3-9	Analog Voltage	4.5 V	5.5 V	Connector	0.5 V	4.5 V	500 PSI	3447.38 kPa	62.05 kPa	9 PSI	1000 PSI	6894.76 kPa	Cylinder	135 °C	-40 °C	Threaded	0.8 %	Industrial Automation	Temperature Compensated	NPT	0.25 "	6.35 mm	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR PRES ABS 9-500PSI W/TEMP

Technical documentation and resources

No documents available
