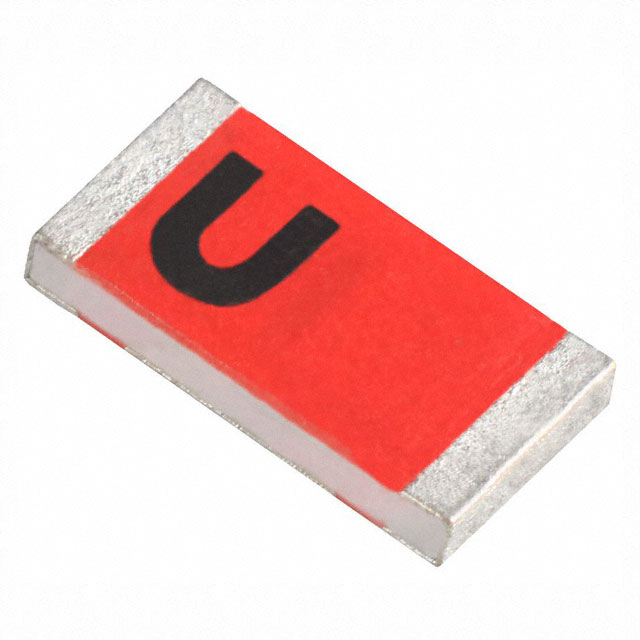

H2U94W1H1G0300

Active

Unictron Technologies Corporation

WIFI+GNSS 1560-1610 2400-2500MHZ

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

WIFI+GNSS 1560-1610 2400-2500MHZ

Technical Specifications

Parameters and characteristics for this part

WIFI+GNSS 1560-1610 2400-2500MHZ

Part	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Applications	Antenna Type	Number of Bands	VSWR	Qualification	Gain	Termination	Grade
Unictron Technologies Corporation H2U94W1H1G0300	Bluetooth, WiFi	2.5 GHz	2.4 GHz	1.575 GHz, 2.45 GHz	Surface Mount	0.5 mm	0.02 in	Bluetooth, GPS, Wi-Fi, Zigbee™	Chip	2	2	AEC-Q200	1.3 dBi, 1.8 dBi	Solder	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, GPS, Wi-Fi, Zigbee™ Chip Solder Surface Mount
