5026-36

Obsolete

Pomona Electronics

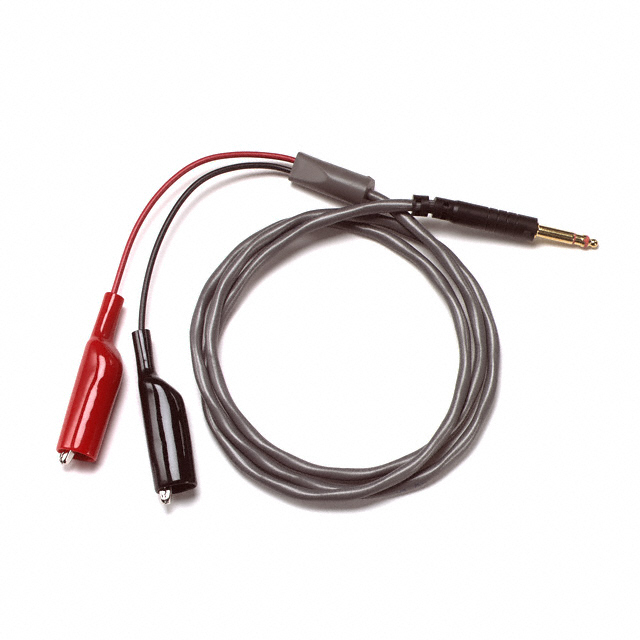

CABLE ASSEMBLY 0.914M 22AWG BANTAM PLUG TO 2(ALLIGATOR CLIP)

Search across all available documentation for this part.

Obsolete

Pomona Electronics

CABLE ASSEMBLY 0.914M 22AWG BANTAM PLUG TO 2(ALLIGATOR CLIP)

Technical Specifications

Parameters and characteristics for this part

Specification	5026-36

2nd Connector	Bantam Plug
Cable Length	36 in
Cable Length	914.4 mm
Configuration	Alligator to Bantam
Contents	Black Plug, Black and Red Leads, Black, 1 Cable
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated	DC
Voltage - Rated	150 VAC
Wire Gauge	22 AWG

Part	Temperature Range	Temperature Range	Current Rating (Amps)	Cable Length	Cable Length	Contents	2nd Connector	Material - Insulation	Wire Gauge	Configuration	Voltage - Rated	Voltage - Rated
Pomona Electronics 5026-36	50 °C	122 °F	5 A	36 in	914.4 mm	1 Cable Black Black and Red Leads Black Plug	Bantam Plug	Poly-Vinyl Chloride (PVC)	22 AWG	Alligator to Bantam	DC	150 VAC
Pomona Electronics 5026-60	50 °C	122 °F	5 A	5 ft	1524 mm	1 Cable Black Black and Red Leads Black Plug	Bantam Plug	Poly-Vinyl Chloride (PVC)	22 AWG	Alligator to Bantam	DC	150 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

36.0" (914.40mm) Alligator Clip, Insulated (2) To Bantam Plug Test Lead 150VAC, DC 1 Cable, Black, Black and Red Leads, Black Plug

Technical documentation and resources

No documents available
