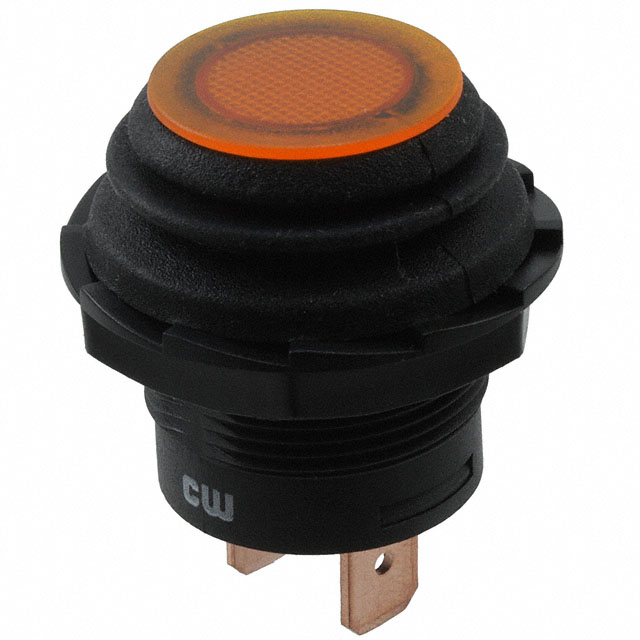

GPB553A201BA

Active

CW Industries

SWITCH PUSH SPST-NO 10A 14V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GPB553A201BA

Active

CW Industries

SWITCH PUSH SPST-NO 10A 14V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GPB553A201BA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Amber
Current Rating (Amps)	10 A
Electrical Life	20000 Steps
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - DC	14 V

GPB553A Series

Part	Electrical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Ingress Protection	Mounting Type	Termination Style	Color - Actuator/Cap	Voltage Rating - DC	Type	Switch Function	Circuit	Illumination Voltage (Nominal)	Illumination Type, Color
CW Industries GPB553A201BB	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Black	14 V	Standard	Off-Mom	SPST-NO
CW Industries GPB553A2L01BG	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Green	14 V	Illuminated Standard	Off-Mom	SPST-NO	12 VDC	Green LED
CW Industries GPB553A201BA	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Amber	14 V	Standard	Off-Mom	SPST-NO
CW Industries GPB553A2L01BR	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Red	14 V	Illuminated Standard	Off-Mom	SPST-NO	12 VDC	LED Red
CW Industries GPB553A201BG	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Green	14 V	Standard	Off-Mom	SPST-NO
CW Industries GPB553A2L01BW	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	White	14 V	Illuminated Standard	Off-Mom	SPST-NO	12 VDC	LED White
CW Industries GPB553A2L01BA	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Amber	14 V	Illuminated Standard	Off-Mom	SPST-NO	12 VDC	Amber LED
CW Industries GPB553A201BR	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Red	14 V	Standard	Off-Mom	SPST-NO
CW Industries GPB553A2L01BU	20000 Steps	22 mm	10 A	Button Round	-25 °C	85 °C	No Marking	IP65 - Dust Tight Water Resistant	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	Blue	14 V	Illuminated Standard	Off-Mom	SPST-NO	12 VDC	Blue LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.69

Description

General part information

GPB553A Series

Pushbutton Switch SPST-NO Standard Panel Mount, Front
