786155-5

Active

TE Connectivity AMP Connectors

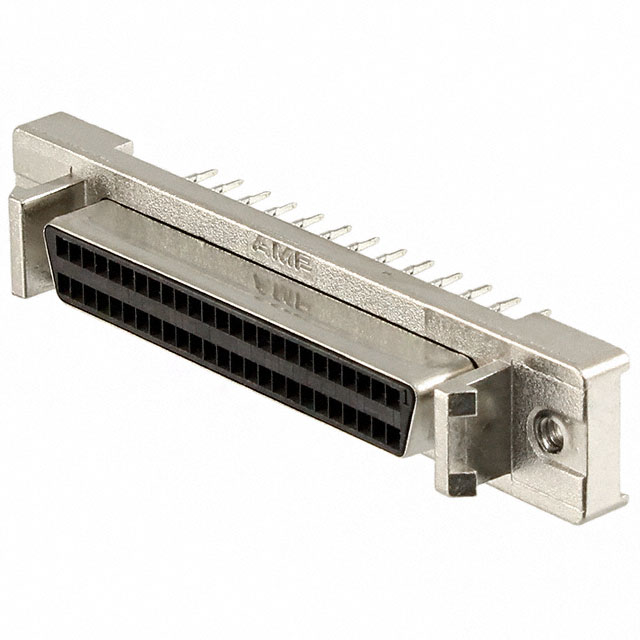

CONN D-TYPE RCPT 50P VERT PRESS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50P VERT PRESS

Technical Specifications

Parameters and characteristics for this part

Specification	786155-5

Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polyphthalamide (PPA)
Features	Shielded
Flange Feature	Housing/Shell (2-56), Latchblocks
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Press-Fit
Voltage Rating	30 VDC

CONN D-TYPE RCPT 50P VERT PRESS

Part	Number of Rows	Features	Mounting Type	Contact Finish	Connector Style	Number of Positions	Contact Type	Connector Type	Voltage Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Material Flammability Rating	Color	Dielectric Material	Contact Material	Shell Material, Finish
TE Connectivity AMP Connectors 786155-5	2	Shielded	Through Hole	Gold	D-Type	50	Signal	Receptacle, Female Sockets	30 VDC	Press-Fit	105 ░C	-55 °C	Housing/Shell (2-56), Latchblocks	0.05	0.1	UL94 V-0	Black	Polyphthalamide (PPA)	Phosphor Bronze	Nickel Plated, Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	630	$ 10.91

General part information

50 Position D-Type Receptacle, Female Sockets Connector

Technical documentation and resources
