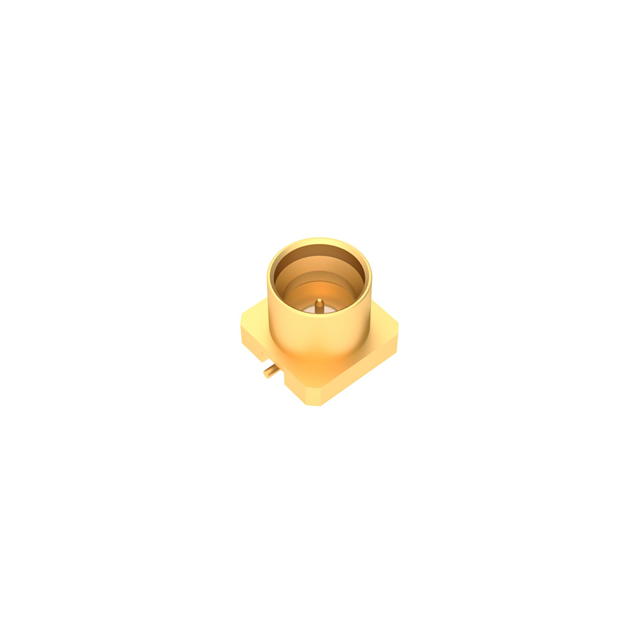

Specification	R222941100

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max	12.4 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R22294 Series

Part	Connector Style	Fastening Type	Shield Termination	Connector Type	Contact Termination	Frequency - Max	Housing Color	Center Contact Material	Features	Mounting Type	Number of Ports	Impedance	Voltage Rating	Body Finish	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Mating Cycles	Center Contact Plating
Radiall USA, Inc. R222941100	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Full Detent	Surface Mount	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222941324	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Beryllium Copper	Limited Detent Non-Magnetic	Surface Mount	1	50 Ohm	335 V	Gold	Bronze	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222940100W	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Full Detent	Through Hole	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222941130	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Full Detent	Surface Mount	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222940300	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Limited Detent	Through Hole	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222941300	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Limited Detent	Surface Mount	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222940100	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Full Detent	Through Hole	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222941700W	SMP	Snap-On	Solder	Male Pin Receptacle	Solder	12.4 GHz	Gold	Brass	Smooth Bore	Surface Mount	1	50 Ohm	335 V	Gold	Brass	125 °C	-55 °C	Polyetheretherketone (PEEK)	100 cycles	Gold
Radiall USA, Inc. R222946314	SMP		Solder	Female Socket Jack	Solder	12 Gbps	Gold	Bronze	Limited Detent	Through Hole	1	50 Ohm		Gold	Bronze	125 °C	-55 °C	Polytetrafluoroethylene (PTFE)		Gold
