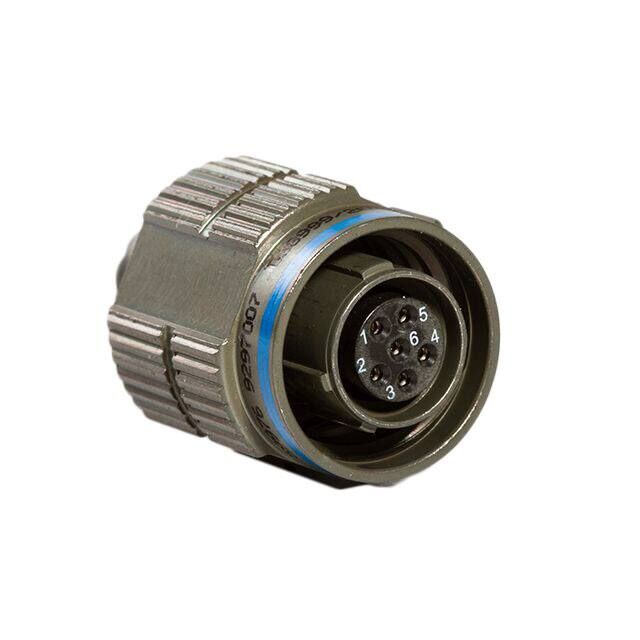

Specification	D38999/20ZJ46BA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size Options	16 (4), 20 (40), 8 Coax (2)
Contact Type	Crimp
Fastening Type	Threaded
Grade	Military
Housing Color	Silver, Black
Ingress Protection	Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions (Special)	2
Number of Positions (Standard)	44
Number of Positions (Total)	46
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	A
Position Types	Coax
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Zinc Nickel, Black Zinc Nickel
Shell Material	Aluminum, Aluminum Alloy
Shell Size - Insert (Maximum)	46
Shell Size - Insert (Minimum)	25
Shell Size (MIL)	J, F
Shielding	Shielded
Type	For Female Sockets

D38999/20ZJ Series

Part	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Shell Finish	Shielding	Mounting Type	Shell Size (MIL)	Contact Type	Type	Material Flammability Rating	Ingress Protection	Orientation	Qualification	Number of Positions	Connector Type	Primary Material	Housing Color	Mounting Feature	Grade	Fastening Type	Contact Shape	Insert Material	Note	Operating Temperature (Min)	Operating Temperature (Max)	Contact Size Options	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Voltage Rating	Termination	Contact Finish - Mating	Contact Material	Color	Current Rating	Applications	Contact Finish Thickness - Mating	Number of Positions (Total)	Position Types	Number of Positions (Standard)	Number of Positions (Special)	Contact Size (Power)	Number of Positions (Power)	Number of Positions (Normal)	Current Rating Options	Ingress Protection Description	Ingress Protection IP Rating
Conesys D38999/20ZJ24AA	Aluminum Aluminum Alloy	25 mm	24 mm	12 16	Black Zinc Nickel Zinc Nickel	Shielded	Panel Mount	B J	Crimp	For Male Pins	UL94 V-0	Waterproof	A	MIL-DTL-38999 Series III	24 pos	Plug Housing Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular	Thermoplastic	Contacts Not Included	-65 °C	175 °C
Conesys D38999/20ZJ35AN	Aluminum Aluminum Alloy				Black Zinc Nickel Zinc Nickel	Shielded	Panel Mount	D J	Crimp	For Male Pins	UL94 V-0	Waterproof	N (Normal)	MIL-DTL-38999 Series III	128	Plug Housing Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular	Thermoplastic	Contacts Not Included	-65 °C	175 °C	22D	25	35
Conesys D38999/20ZJ61AC	Aluminum			20	Zinc Nickel	Shielded	Panel Mount	J	Crimp	For Male Pins	UL94 V-0	Environment Resistant Waterproof	C	MIL-DTL-38999 Series III	61	Plug Housing Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular		Contacts Not Included	-65 °C	175 °C		25	61
Conesys D38999/20ZJ35PA	Aluminum Alloy				Black Zinc Nickel	Shielded	Panel Mount	J			UL94 V-0	Waterproof	A	MIL-DTL-38999 Series III	128	Male Pins Receptacle	Metal		Flange	Military	Threaded		Thermoplastic		-65 °C	125 °C		25	35	500 V	Crimp	Gold	Copper Alloy	Black	5 A	Aerospace Marine Military	50 µin
Conesys D38999/20ZJ46BA	Aluminum Aluminum Alloy				Black Zinc Nickel Zinc Nickel	Shielded	Panel Mount	F J	Crimp	For Female Sockets	UL94 V-0	Waterproof	A	MIL-DTL-38999 Series III		Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular	Thermoplastic	Contacts Not Included	-65 °C	175 °C	16 (4) 20 (40) 8 Coax (2)	25	46									46	Coax	44	2
Conesys D38999/20ZJ61SC	Aluminum Alloy				Black Zinc Nickel	Shielded	Panel Mount	J			UL94 V-0	Waterproof	C	MIL-DTL-38999 Series III	61	Female Sockets Receptacle	Metal		Flange	Military	Threaded		Thermoplastic		-65 °C	125 °C		25	61	500 V	Crimp	Gold	Copper Alloy	Black	7.5 A	Aerospace Marine Military	50 µin
Conesys D38999/20ZJ11AA	Aluminum Aluminum Alloy	25 mm	11 mm	20	Black Zinc Nickel Zinc Nickel	Shielded	Panel Mount	J	Crimp	For Male Pins	UL94 V-0	Waterproof	A	MIL-DTL-38999 Series III		Plug Housing Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular	Thermoplastic	Contacts Not Included	-65 °C	175 °C												11				10	9	2
Conesys D38999/20ZJ4SA	Aluminum	25 mm	4 mm		Black Zinc Nickel	Shielded	Panel Mount	J					A		56	Female Sockets Receptacle	Metal		Flange		Threaded		Thermoplastic		-65 °C	200 °C					Crimp	Gold	Copper Alloy	Black		Aviation Marine Military	50 µin								13A 7.5A	Dust Tight Waterproof	IP67
Conesys D38999/20ZJ37AC	Aluminum Aluminum Alloy			16 S	Black Zinc Nickel Zinc Nickel	Shielded	Panel Mount	J	Crimp	For Male Pins	UL94 V-0	Waterproof	C	MIL-DTL-38999 Series III	37 pos	Plug Housing Receptacle Housing	Metal	Black Silver	Flange	Military	Threaded	Circular	Thermoplastic	Contacts Not Included	-65 °C	175 °C		25	37
Conesys D38999/20ZJ11PN	Aluminum	25 mm	11 mm		Black Zinc Nickel	Shielded	Panel Mount	J					N (Normal)		11	Male Pins Receptacle	Metal		Flange		Threaded		Thermoplastic		-65 °C	200 °C					Crimp	Gold	Copper Alloy	Black		Aviation Marine Military	50 µin								33A 7.5A	Dust Tight Waterproof	IP67
