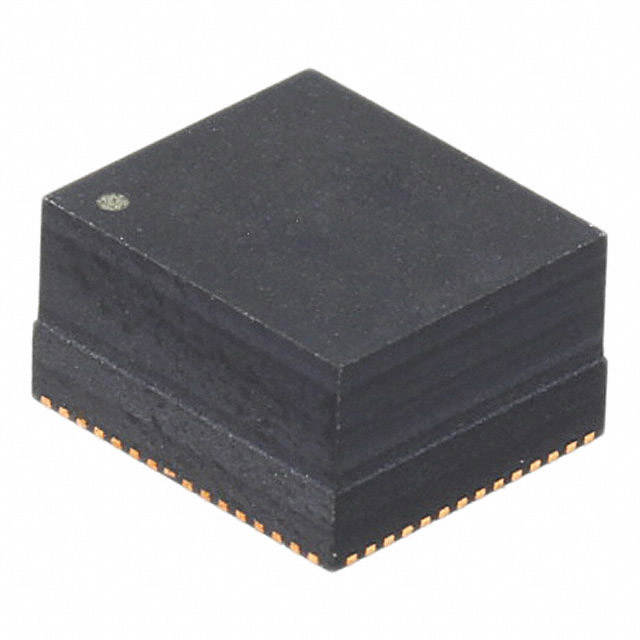

NN31001A-BB
ObsoletePanasonic Industrial Automation Sales
DC DC CONVERTER 0.6-5.5V 39W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NN31001A-BB
ObsoletePanasonic Industrial Automation Sales
DC DC CONVERTER 0.6-5.5V 39W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NN31001A-BB |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 7 A |
| Efficiency | 95 % |
| Features | OVP, UVLO, SCP, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 57-PowerBFQFN Module |
| Power (Watts) | 39 W |
| Size / Dimension [x] | 8.5 mm |
| Size / Dimension [x] | 0.33 in |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [z] | 0.19 in |
| Size / Dimension [z] | 4.7 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NN3100 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 7A 4.5V - 28V Input
