1-102557-4

Active

TE Connectivity AMP Connectors

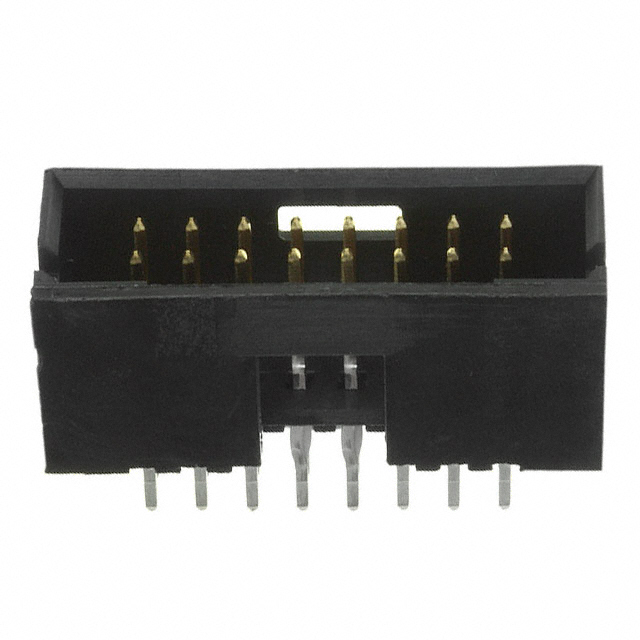

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

1-102557-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-102557-4	102557 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	8.13 mm	8.13 mm
Contact Length - Mating	0.32 in	0.32 in
Contact Length - Post	0.25 in	0.25 in
Contact Length - Post	6.35 mm	6.35 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	6 - 60
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	16.76 mm	16.76 mm
Overall Contact Length	0.66 in	0.66 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102557 Series

CONN HEADER VERT 60POS 2.54MM

Part	Termination	Insulation Height	Insulation Height	Shrouding	Overall Contact Length	Overall Contact Length	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Number of Positions	Insulation Color	Fastening Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Contact Finish - Post	Style	Contact Length - Mating	Contact Length - Mating	Number of Positions
TE Connectivity AMP Connectors 5-102557-7	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	60	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	40	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-3	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	14	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 102557-2	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	20	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 5-102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	40	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 6-102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin		Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in	16
TE Connectivity AMP Connectors 102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	30	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 6-102557-0	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	6	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin		Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in	16
TE Connectivity AMP Connectors 5-102557-9	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	10	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	8	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in

Description

General part information

102557 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
