5-102557-9

Active

TE Connectivity AMP Connectors

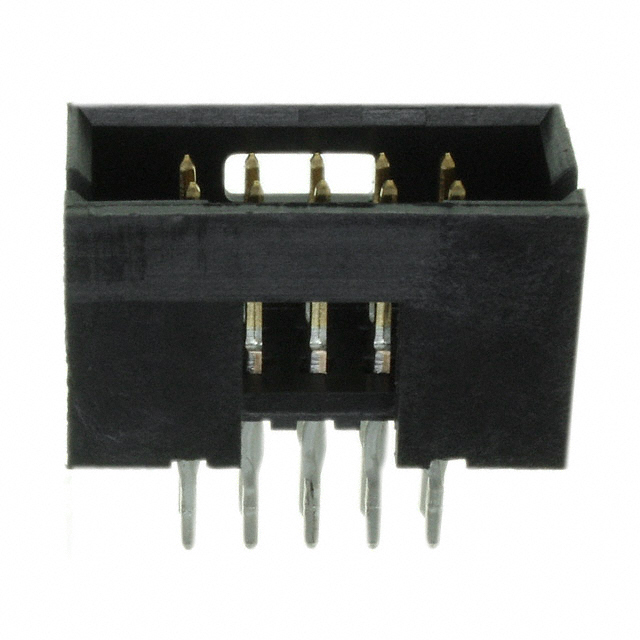

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

5-102557-9

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5-102557-9	102557 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	8.13 mm	8.13 mm
Contact Length - Mating	0.32 in	0.32 in
Contact Length - Post	0.25 in	0.25 in
Contact Length - Post	6.35 mm	6.35 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	6 - 60
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	16.76 mm	16.76 mm
Overall Contact Length	0.66 in	0.66 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

102557 Series

CONN HEADER VERT 60POS 2.54MM

Part	Termination	Insulation Height	Insulation Height	Shrouding	Overall Contact Length	Overall Contact Length	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Number of Positions	Insulation Color	Fastening Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Contact Finish - Post	Style	Contact Length - Mating	Contact Length - Mating	Number of Positions
TE Connectivity AMP Connectors 5-102557-7	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	60	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	40	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-3	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	14	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 102557-2	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	20	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 5-102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	40	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 6-102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin		Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in	16
TE Connectivity AMP Connectors 102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	30	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 6-102557-0	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	6	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-4	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin		Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in	16
TE Connectivity AMP Connectors 5-102557-9	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	10	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin	Board to Board, Cable	8.13 mm	0.32 in
TE Connectivity AMP Connectors 1-102557-1	Press-Fit, Solder	0.44 in	11.18 mm	Shrouded - 4 Wall	16.76 mm	0.66 in	Square	105 ░C	-55 °C	Copper Alloy	Thermoplastic	2.54 µm	100 µin	2	0.1 in	2.54 mm	3 A	Male Pin	8	Black	Detent Lock	Through Hole	2.54 mm	0.1 in	0.25 in	6.35 mm	Gold	All	30 Áin	0.76 Ám	Header	UL94 V-0	Tin-Lead	Board to Board, Cable	8.13 mm	0.32 in

Description

General part information

102557 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
