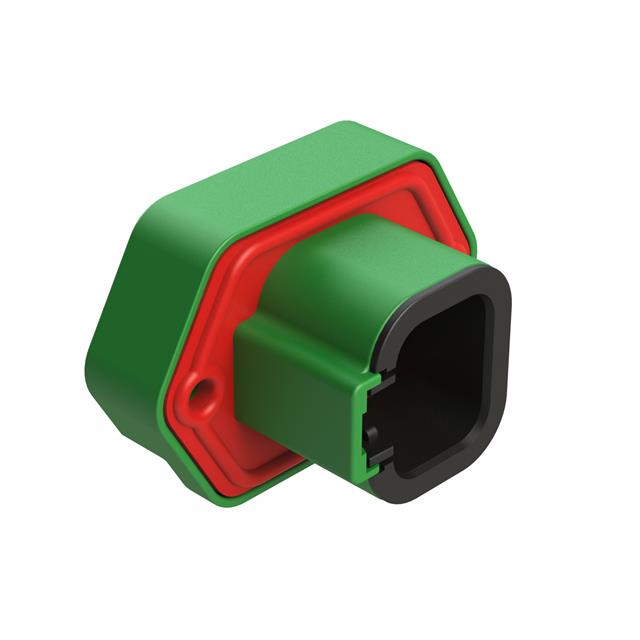

ATP15-4PC-BM02
ActiveAmphenol Sine Systems Corp
4 POSITION PCB RECEPTACLE WITH F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP15-4PC-BM02 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Post [x] | 0.181 in |
| Contact Length - Post [x] | 4.6 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 25 A |
| Fastening Type | Latch Holder |
| Features | Potting Wall, Mounting Flange, Board Lock, Sealed |
| Ingress Protection | IP68, IP69K |
| Insulation Color | Green |
| Insulation Height | 1.339 " |
| Insulation Height | 34 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 38.6 mm |
| Overall Contact Length | 1.52 in |
| Pitch - Mating | 6.7 mm |
| Pitch - Mating | 0.264 in |
| Row Spacing - Mating [x] | 10.2 mm |
| Row Spacing - Mating [x] | 0.402 " |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
ATP15-4PC Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Current Rating (Amps) | Contact Type | Style | Contact Shape | Contact Finish - Post | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Number of Rows | Fastening Type | Ingress Protection | Voltage Rating | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Features | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Insulation Material | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | -55 °C | 125 °C | 4 | 25 A | Male Pin | Board to Cable/Wire | Circular | Gold | Solder | 0.181 in | 4.6 mm | Shrouded - 4 Wall | 2 | Latch Holder | IP68 IP69K | 250 VDC | Receptacle | 10.2 mm | 0.402 " | Board Lock Mounting Flange Potting Wall Sealed | 38.6 mm | 1.52 in | All | Thermoplastic | Green | 6.7 mm | 0.264 in | Copper Alloy | Panel Mount Through Hole | 1.339 " | 34 mm | Gold |
Amphenol Sine Systems Corp | -55 °C | 125 °C | 4 | 25 A | Male Pin | Board to Cable/Wire | Circular | Tin | Solder | 0.181 in | 4.6 mm | Shrouded - 4 Wall | 2 | Latch Holder | IP68 IP69K | 250 VDC | Receptacle | 10.2 mm | 0.402 " | Board Lock Mounting Flange Potting Wall Sealed | 38.6 mm | 1.52 in | All | Thermoplastic | Green | 6.7 mm | 0.264 in | Copper Alloy | Panel Mount Through Hole | 1.339 " | 34 mm | |
Amphenol Sine Systems Corp | -55 °C | 125 °C | 4 | 25 A | Male Pin | Board to Cable/Wire | Circular | Gold | Solder | 0.181 in | 4.6 mm | Shrouded - 4 Wall | 2 | Latch Holder | IP68 IP69K | 250 VDC | Receptacle | 10.2 mm | 0.402 " | Board Lock Mounting Flange Sealed | 38.6 mm | 1.52 in | All | Thermoplastic | Green | 6.7 mm | 0.264 in | Copper Alloy | Panel Mount Through Hole | 1.339 " | 34 mm | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 12.68 | |
Description
General part information
ATP15-4PC Series
Connector Header Panel Mount, Through Hole 4 position 0.264" (6.70mm)
