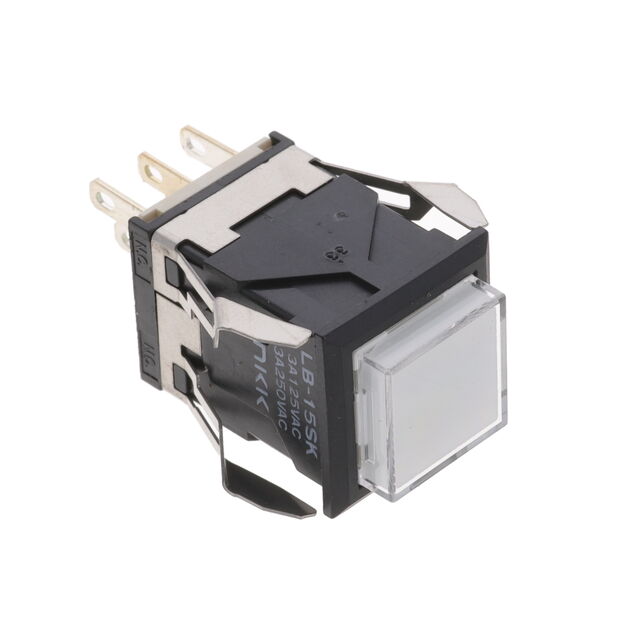

LB15SKW01-6F-JB

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-(ON), SQUARE, TRANSPARENT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LB15SKW01-6F-JB

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-(ON), SQUARE, TRANSPARENT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15SKW01-6F-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	16.2 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB15SKW01 Series

Part	Color - Actuator/Cap	Mechanical Life	Voltage Rating - AC	Type	Electrical Life	Voltage Rating - DC	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Illumination Type, Color	Switch Function	Mounting Type	Illumination Voltage (Nominal)	Actuator Type	Termination Style	Termination Style	Termination Style	Current Rating (Amps)
NKK Switches LB15SKW01-6F-JB	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Green LED	On-Mom	Panel Mount Snap-In	3.3 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5D-JD	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Amber LED	On-Mom	Panel Mount Snap-In	2 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-1C-A	Black	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	LED Red	On-Mom	Panel Mount Snap-In	1.9 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5F-JF	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Green LED	On-Mom	Panel Mount Snap-In	2.1 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-1D-A	Black	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Amber LED	On-Mom	Panel Mount Snap-In	2 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5D05-JD	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Amber LED	On-Mom	Panel Mount Snap-In	5 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5F24-JF	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Green LED	On-Mom	Panel Mount Snap-In	24 V	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5F05-JF	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Green LED	On-Mom	Panel Mount Snap-In	5 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5C24-JC	Clear (Red Filter/Diffuser)	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	LED Red	On-Mom	Panel Mount Snap-In	24 V	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A
NKK Switches LB15SKW01-5D12-JD	Clear	1000000 Cycles	125 V	Illuminated Standard	100000 Cycles	30 V	No Marking	50 °C	-25 °C	16.2 mm	16.2 mm	SPDT	Amber LED	On-Mom	Panel Mount Snap-In	12 VDC	Button Square	0.11 in	Quick Connect Solder	2.8 mm	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.72
		10	$ 21.54
		100	$ 18.75
Newark	Each	1	$ 42.21
		5	$ 37.64
		10	$ 36.36
		25	$ 34.35
		50	$ 31.98
		100	$ 28.32
		250	$ 25.40

Description

General part information

LB15SKW01 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
