K11ME7-P05LJG0-6580

Active

ODU

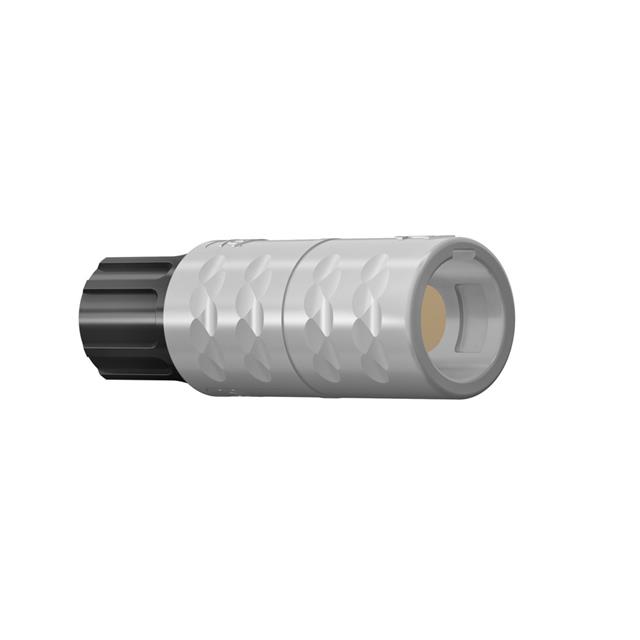

ODU MEDI-SNAP RECEPT, INLINE, ST

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K11ME7-P05LJG0-6580

Active

ODU

ODU MEDI-SNAP RECEPT, INLINE, ST

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K11ME7-P05LJG0-6580

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	E
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	35 V

K11ME7-P Series

Part	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insert Material	Color	Fastening Type	Applications	Material Flammability Rating	Features	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Contact Finish - Mating	Connector Type	Shell Material	Ingress Protection	Contact Material	Shell Size - Insert	Mounting Type	Voltage Rating	Shielding	Orientation	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]
ODU K11ME7-P10LCC0-5220	Plastic	-50 °C	120 °C	10	Polyetheretherketone (PEEK)	Gray Red	Detent Lock Push-Pull	Industrial Measurement Medical Testing Equipment	UL94 V-0	Backshell	0.157 in	0.205 in	4 mm	5.2 mm	4 A	Gold	Receptacle Female Sockets	Polysulfone (PSU)	IP50	Brass	1	Free Hanging (In-Line)	25 V	Unshielded	E	Polysulfone (PSU)
ODU K11ME7-P02LPH0-5250	Plastic	-50 °C	120 °C	2	Polyetheretherketone (PEEK)	Gray Green	Detent Lock Push-Pull	Industrial Measurement Medical Testing Equipment	UL94 V-0	Backshell	0.157 in	0.205 in	4 mm	5.2 mm	12 A	Gold	Receptacle Female Sockets	Polysulfone (PSU)	IP50	Brass	1	Free Hanging (In-Line)	48 VDC	Unshielded	E	Polysulfone (PSU)
ODU K11ME7-P05LJG0-6580	Plastic	-50 °C	120 °C		Polyetheretherketone (PEEK)		Detent Lock Push-Pull	Industrial Measurement Medical Testing Equipment	UL94 V-0	Backshell					7.5 A	Gold	Receptacle Female Sockets	Polysulfone (PSU)	IP50	Brass	1	Free Hanging (In-Line)	35 V	Unshielded	E	Polysulfone (PSU)	0.209 in 0.256 in	5.3 mm 6.5 mm
ODU K11ME7-P02LPH0-5270	Plastic	-50 °C	120 °C	2	Polyetheretherketone (PEEK)	Gray	Detent Lock Push-Pull	Industrial Measurement Medical Testing Equipment	UL94 V-0	Backshell	0.157 in	0.205 in	4 mm	5.2 mm	12 A	Gold	Receptacle Female Sockets	Polysulfone (PSU)	IP50	Brass	1	Free Hanging (In-Line)	48 VDC	Unshielded	E	Polysulfone (PSU)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.65

Description

General part information

K11ME7-P Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
