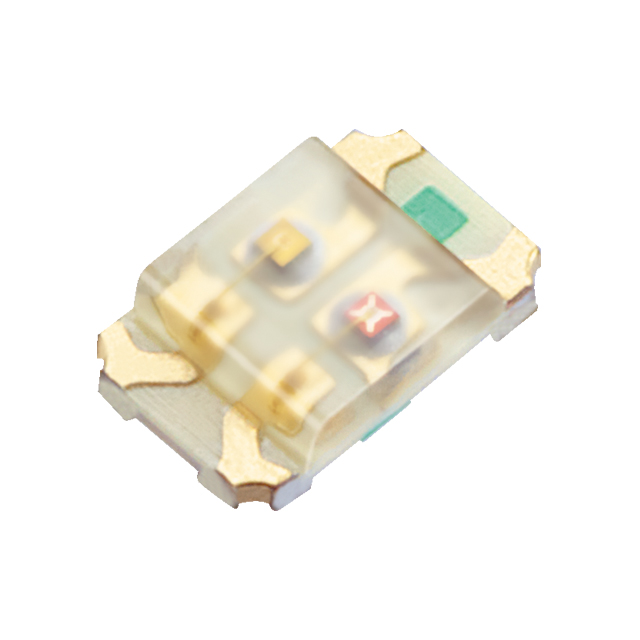

Specification	APHBM2012SURKZGKC

Color	Green, Red
Configuration	Independent
Current - Test (Green)	20 mA
Current - Test (Red)	20 mA
Current - Test Colors	Red, Green
Height (Max)	0.45 mm
Lens Color	Colorless
Lens Length	1.25 mm
Lens Style	Rectangle, Flat Top
Lens Transparency	Clear
Lens Width	1.2 mm
Millicandela Rating (Green)	280 mcd
Millicandela Rating (Red)	250 mcd
Millicandela Rating Colors	Red, Green
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Package Name	4-SMD
Size / Dimension Length	2 mm
Size / Dimension Width	1.25 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Green)	3.3 V
Voltage - Forward (Vf) (Typ) (Red)	1.95 V
Voltage - Forward (Vf) (Typ) Color	Green, Red
Wavelength - Dominant (Green)	525 nm
Wavelength - Dominant (Red)	630 nm
Wavelength - Dominant Color	Green, Red
Wavelength - Peak (Green)	515 nm
Wavelength - Peak (Red)	645 nm
Wavelength - Peak Colors	Red, Green

APHBM2012 Series

Part	Lens Color	Lens Style	Viewing Angle	Current - Test (Red)	Current - Test Colors	Current - Test	Lens Width	Lens Length	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Package / Case	Voltage - Forward (Vf) (Typ) (Value 1)	Voltage - Forward (Vf) (Typ) (Value 2)	Wavelength - Dominant Color	Wavelength - Dominant (Secondary)	Wavelength - Dominant (Primary)	Package Name	Package Length	Package Width	Wavelength - Peak Colors	Wavelength - Peak (Red)	Wavelength - Peak (Yellow)	Lens Transparency	Height (Max)	Size / Dimension Length	Size / Dimension Width	Color	Configuration	Mounting Type	Millicandela Rating (Blue)	Current - Test (Blue)	Wavelength - Dominant (Yellow)	Wavelength - Dominant (Blue)	Wavelength - Peak (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Green)	Wavelength - Peak (Green)	Current - Test (Green)	Millicandela Rating (Green)	Wavelength - Dominant (Green)	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) (Yellow)	Wavelength - Dominant (Red)	Voltage - Forward (Vf) (Typ) (Red)
Kingbright APHBM2012SURKSYKC	Colorless	Flat Top Rectangle	120 °	20 mA	Red Yellow	20 mA	1.25 mm	1.3 mm	Red Yellow	200 mcd	150 mcd	0805 (2012 Metric)	1.95 V	2 V	Red Yellow	590 nm	635 nm	2012 2012(0805)	0.8 mm	0.5 mm	Red Yellow	650 nm	590 nm	Clear	0.45 mm	2 mm	1.25 mm	Red Yellow	Independent	Surface Mount
Kingbright APHBM2012LVBDSYKJ3C	Colorless	Flat Top Rectangle	120 °		Blue Yellow	2 mA	1.25 mm	1.2 mm	Blue Yellow		35 mcd	4-SMD No Lead	2.7 V	1.9 V	Blue Yellow			4-SMD			Blue Yellow		590 nm	Clear	0.45 mm	2 mm	1.25 mm	Blue Yellow	Independent	Surface Mount	20 mcd	2 mA	590 nm	470 nm	465 nm
Kingbright APHBM2012LVBDZGKC	Colorless	Flat Top Rectangle	120 °		Blue Green		1.25 mm	1.2 mm	Blue Green			0805 (2012 Metric)			Blue Green			4-SMD			Blue Green			Clear	0.45 mm	2 mm	1.25 mm	Blue Green	Independent	Surface Mount	20 mcd	2 mA		470 nm	465 nm	Blue Green	2.7 V	2.7 V	515 nm	2 mA	90 mcd	525 nm
Kingbright APHBM2012LQBDCGKC	Colorless	Flat Top Rectangle	120 °		Blue Green		1.25 mm	1.2 mm	Blue Green			4-SMD No Lead			Blue Green			4-SMD			Blue Green			Clear	0.45 mm	2 mm	1.25 mm	Blue Green	Independent	Surface Mount	12 mcd	2 mA		465 nm	460 nm	Blue Green	2.7 V	1.9 V	574 nm	2 mA	2 mcd	570 nm
Kingbright APHBM2012CGKSYKC	Colorless	Flat Top Rectangle	120 °		Green Yellow	20 mA	1.25 mm	1.3 mm	Green Yellow		120 mcd	0805 (2012 Metric)	2.1 V	2 V	Green Yellow	590 nm	570 nm	2012 2012(0805)	0.8 mm	0.5 mm	Green Yellow		590 nm	Clear	0.45 mm	2 mm	1.25 mm	Green Yellow	Independent	Surface Mount			590 nm			Green Yellow		2.1 V	574 nm	20 mA	50 mcd	570 nm	570nm Green 590nm Yellow	2 V
Kingbright APHBM2012LSURKSYKC	Colorless	Flat Top Rectangle	120 °	2 mA	Red Yellow		1.25 mm	1.2 mm	Red Yellow	10 mcd	10 mcd	4-SMD No Lead	1.8 V	1.9 V	Red Yellow			4-SMD			Red Yellow	645 nm	590 nm	Clear	0.45 mm	2 mm	1.25 mm	Red Yellow	Independent	Surface Mount															630 nm
Kingbright APHBM2012QBDSURKC	Colorless	Flat Top Rectangle	120 °	20 mA	Blue Red		1.25 mm	1.3 mm	Blue Red	80 mcd		0805 (2012 Metric)			Blue Red			2012 2012(0805)	0.8 mm	0.5 mm	Blue Red	645 nm		Clear	0.45 mm	2 mm	1.25 mm	Blue Red	Independent	Surface Mount	80 mcd	20 mA		465 nm	460 nm	Blue Red	3.3 V								630 nm	1.95 V
Kingbright APHBM2012LVBDSEKJ3C	Colorless	Flat Top Rectangle	120 °	2 mA	Blue Red		1.25 mm	1.2 mm	Blue Red	60 mcd		0805 (2012 Metric)			Blue Red			4-SMD			Blue Red	640 nm		Clear	0.45 mm	2 mm	1.25 mm	Blue Red	Independent	Surface Mount	20 mcd	2 mA		470 nm	465 nm	Blue Red	2.7 V								625 nm	1.8 V
Kingbright APHBM2012SURKZGKC	Colorless	Flat Top Rectangle	120 °	20 mA	Green Red		1.2 mm	1.25 mm	Green Red	250 mcd		0805 (2012 Metric)			Green Red			4-SMD			Green Red	645 nm		Clear	0.45 mm	2 mm	1.25 mm	Green Red	Independent	Surface Mount						Green Red		3.3 V	515 nm	20 mA	280 mcd	525 nm			630 nm	1.95 V
Kingbright APHBM2012LSURKZGKC	Colorless	Flat Top Rectangle	120 °	2 mA	Green Red		1.25 mm	1.2 mm	Green Red	10 mcd		0805 (2012 Metric)			Green Red			4-SMD			Green Red	645 nm		Clear	0.45 mm	2 mm	1.25 mm	Green Red	Independent	Surface Mount						Green Red		2.7 V	515 nm	2 mA	90 mcd	525 nm			630 nm	1.8 V
